Atlantic® Typhoon Aeration Kits provide reliable pond aeration and water circulation for ponds ranging from 1,000 to 12,000 gallons. These complete aeration systems combine efficient diaphragm air pumps with air stones or diffusers, tubing, and check valves for convenient pond installation.
The Typhoon series includes Mini and Professional aeration kits for different pond sizes and water depths. Use the comparison chart below to choose the right kit based on your pond volume, water depth, airflow requirements, and diffuser configuration.
Atlantic Typhoon Aeration Kit Specifications
| Specification | TAKIT0400 | TAKIT0800 | TADKIT1800 | TADKIT3600 |
|---|---|---|---|---|
| Series | Mini | Mini | Professional | Professional |
| Pond Size | Up to 1,000 gal. | Up to 2,000 gal. | Up to 6,000 gal. | Up to 12,000 gal. |
| Maximum Depth | 5 ft. | 5 ft. | 7 ft. | 11 ft. |
| Maximum Airflow | 0.23 CFM / 6.5 LPM | 0.46 CFM / 13 LPM | 1.06 CFM / 30 LPM | 2.12 CFM / 60 LPM |
| Power | 4.5 W | 9 W | 25 W | 35 W |
| Tubing | 1/4" × 20 ft. | 2 × 1/4" × 20 ft. | 3/8" × 20 ft. weighted | 3/8" × 40 ft. weighted |
| Diffusers / Air Stones | 1 × 4" air stone | 2 × 4" air stones | 1 × 8" diffuser | 2 × 8" diffusers |
| Pump Model | TA400 | TA800 | TA1800 | TA3600 |
| Warranty | 3-year limited | 3-year limited | 3-year limited | 3-year limited |
Maximum airflow is the pump's rated output. Actual airflow decreases as water depth and system resistance increase.
Which Atlantic Typhoon Aeration Kit Should I Choose?
Choose the TAKIT0400 for ponds up to 1,000 gallons, the TAKIT0800 for ponds up to 2,000 gallons, the TADKIT1800 for ponds up to 6,000 gallons, or the TADKIT3600 for ponds up to 12,000 gallons. The Typhoon Mini kits are designed for smaller ponds and include compact air stones, while the Professional kits provide greater airflow, larger diffusers, and greater depth capability for larger ponds.
When choosing an aeration kit, consider water depth as well as pond volume. Deeper water creates greater operating pressure, which reduces the amount of air a pump can deliver. For larger or deeper ponds, the Professional models provide the additional airflow needed for more demanding aeration systems.
Atlantic Typhoon Mini Aeration Kits

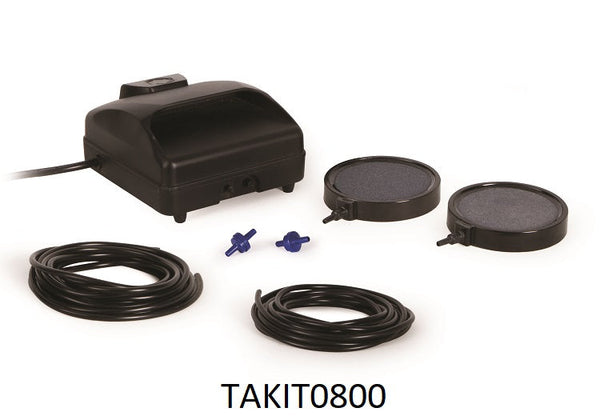

The Atlantic Typhoon Mini Aeration Kits are compact, energy-efficient aeration systems designed for smaller ponds up to 2,000 gallons. The TAKIT0400 includes one air stone for ponds up to 1,000 gallons, while the TAKIT0800 uses two air stones for ponds up to 2,000 gallons. Both models are designed for water depths up to 5 feet.
Atlantic Typhoon Professional Aeration Kits

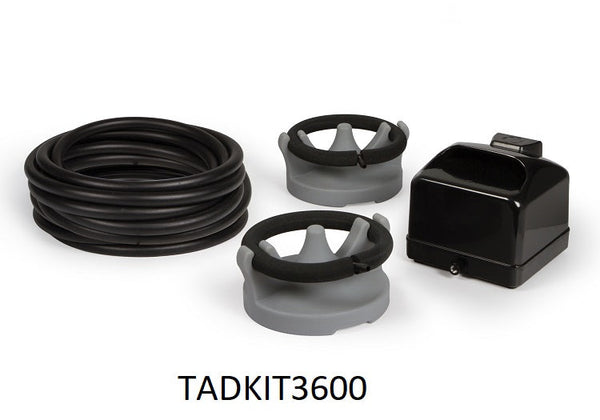

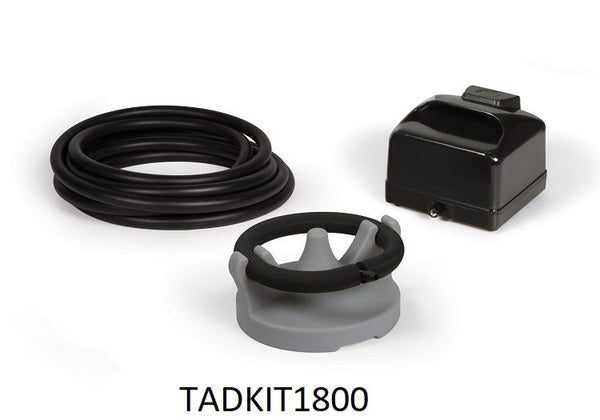

The Atlantic Typhoon Professional Aeration Kits are designed for larger ponds and deeper water where greater airflow and diffuser capacity are needed. The TADKIT1800 is rated for ponds up to 6,000 gallons and depths up to 7 feet, while the TADKIT3600 is designed for ponds up to 12,000 gallons and depths up to 11 feet. Both kits use larger diffusers and weighted airline to provide efficient aeration and water circulation.
What's Included with Atlantic Typhoon Aeration Kits?
Each Atlantic Typhoon Aeration Kit includes the components needed to create a complete pond aeration system. Depending on the model, the kit includes an Atlantic Typhoon air pump, air stones or diffusers, airline tubing, check valves, and the necessary fittings for connecting the aeration components.
- Typhoon air pump: Efficient diaphragm air pump matched to the capacity of the selected kit.
- Air stones or diffusers: Distribute air into the pond to increase oxygen and improve water circulation.
- Airline tubing: Connects the pump to the pond diffusers or air stones.
- Check valves: Help prevent water from flowing back toward the air pump.
- Fittings and connections: Included components vary by model and provide the connections needed for installation.
See the specifications chart above for the air stone or diffuser configuration, tubing, and other components included with each Typhoon model.
