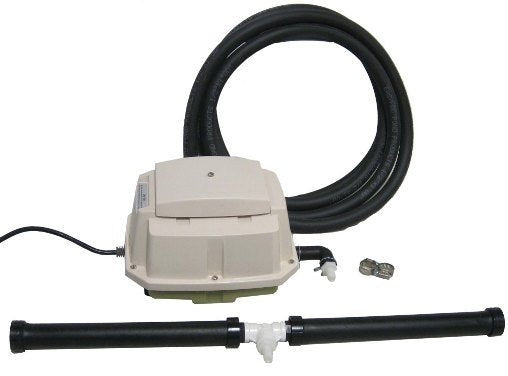

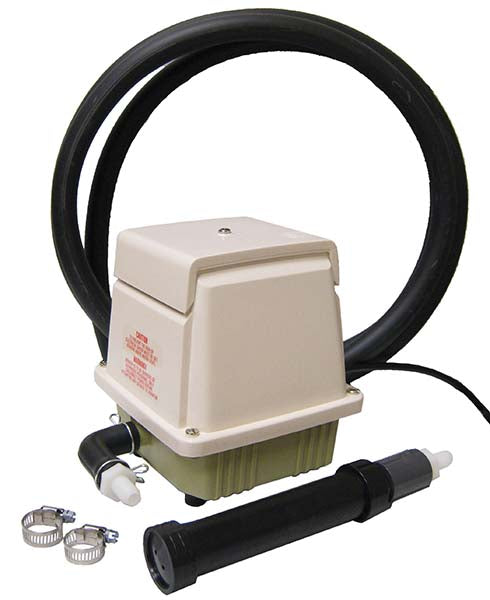

EasyPro™ Deluxe Linear Aeration Kits provide quiet, energy-efficient pond aeration for small to medium-sized ponds. Each complete kit combines an EasyPro linear air compressor, weighted QuickSink airline, and air diffuser to add oxygen and improve water circulation.
Choose from the LA5W, LA10W, and LA15W models for ponds up to approximately 20,000 gallons. The right kit depends on your pond size, water depth, and required airflow. Use the comparison chart below to choose the EasyPro Deluxe Linear Aeration Kit that best fits your pond.
EasyPro Deluxe Linear Aeration Kit Specifications
| Specification | LA5W | LA10W | LA15W |
|---|---|---|---|
| Compressor | ML28 | ML45 | ML80 |
| Air Output | 1.0 CFM | 1.6 CFM | 2.8 CFM |
| Recommended Pond Size | Up to 3,000 gal. | 3,000–7,500 gal. | 7,500–20,000 gal. |
| Maximum Depth | 6 ft. | 8 ft. | 8 ft. |
| Power | 25 W | 45 W | 80 W |
| Weighted Airline | 15 ft. | 15 ft. | 15 ft. |
| Warranty | 3 years | 3 years | 3 years |
EasyPro Deluxe Linear Aeration Kit Benefits
- Quiet operation: Designed for low-noise operation in residential and recreational pond environments.
- Energy efficient: Linear compressors provide continuous aeration with relatively low electrical consumption.
- Oil-less operation: The oil-less compressor design provides clean air with minimal routine maintenance.
- Complete aeration system: Each kit includes the compressor, weighted airline, and diffuser assembly needed to get started.
- Outdoor rated: UL-listed components are designed for outdoor use.
- Three-year warranty: EasyPro backs the Deluxe Linear Aeration Kits with a three-year warranty.
How Linear Pond Aeration Works
A linear aeration system uses an air compressor to send air through weighted tubing to a diffuser placed near the bottom of the pond. The rising bubbles help circulate water, move oxygen-rich surface water downward, and bring deeper water toward the surface. Properly sized aeration can improve oxygen levels and circulation throughout the pond.
- Super Quiet – you can barely hear them from only 5′ away
- Super Energy Efficient – operates for only pennies per day
- Very Reliable – motors can often run constant for 5 – 8 years
- Oil-less Design – provides clean, dry air with minimal maintenance
- UL listed – for outdoor use
Which EasyPro Deluxe Linear Aeration Kit Should I Choose?
Choose the LA5W for ponds up to approximately 3,000 gallons, the LA10W for ponds up to approximately 7,500 gallons, and the LA15W for ponds up to approximately 20,000 gallons. The larger models provide greater airflow for larger ponds and aeration systems with greater demand.
When selecting an aeration kit, consider more than pond volume. Water depth, diffuser resistance, airline length, pond shape, and fish load can all affect the amount of aeration your pond needs. For deeper or more demanding installations, use the pump's operating pressure and airflow characteristics rather than choosing solely by gallons.
Not sure which aeration system is right for your pond? Use our pond aeration backpressure calculator to estimate system pressure based on water depth and airline conditions.
How Linear Pond Aeration Works
A linear aeration system uses an air compressor to push air through tubing to a diffuser positioned in the pond. As bubbles rise through the water, they help circulate deeper water and bring oxygen into the pond. Properly sized aeration can improve oxygen levels and circulation throughout the water column.
