Matala® Heavy Duty Air Manifolds

Matala® SKU: SC2-38

$44.00

Shipping calculated at checkout

Matala Heavy Duty Air Manifolds provide convenient airflow distribution for pond aeration systems that use multiple air diffusers. Designed for use with compatible Matala air pumps, these manifolds allow you to distribute air to different locations around your pond or filtration system.

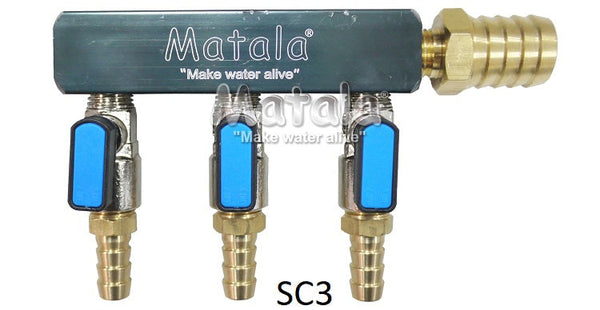

  • Multiple Outlet Configurations: Choose 2-, 3-, or 4-outlet manifold models to accommodate your aeration setup.

  • Individual Airflow Control: Each outlet features its own ball cock valve for adjusting airflow to individual diffuser lines.

  • Three Outlet Sizes: Available with 3/8", 1/2", or 5/8" outlet hose barbs to match your airline tubing.

  • 3/4" Inlet Connection: Connects to the air supply line from compatible Matala air pumps.

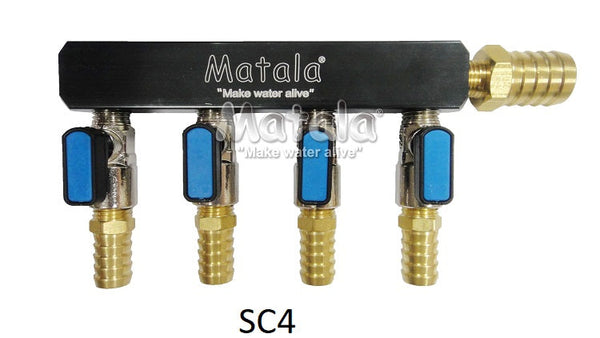

  • Matala recommends: Use the SC2, SC3, SC4 for Matala air pumps HK25L to HK 80LH.  Use the SC4 for Matala air pumps HK100L to HK120LH

Proper manifold selection helps distribute available airflow throughout your pond aeration system.

Matala Heavy Duty Air Manifold Size & Connection Guide

Choose the Matala manifold configuration that matches the number of air lines you need and the diameter of your airline tubing. All configurations feature a 3/4-inch hose barb inlet for the air supply line and multiple outlets for connecting individual diffusers.

Matala Model Number of Outlets Air Pump Inlet Outlet Barb Size
SC2-38 2 3/4" 3/8"
SC2-12 2 3/4" 1/2"
SC2-58 2 3/4" 5/8"
SC3-38 3 3/4" 3/8"
SC3-12 3 3/4" 1/2"
SC3-58 3 3/4" 5/8"
SC4-38 4 3/4" 3/8"
SC4-12 4 3/4" 1/2"
SC4-58 4 3/4" 5/8"

Understanding the Manifold Connections

1. Air Pump Inlet – 3/4" Hose Barb

Connects to the air supply tubing coming from your air pump. The inlet fitting uses 1/2" NPT male threads to screw into the manifold body.   The Air Pump Inlet is shown in the below image as Letter E.

2. Individual Air Outlets – 3/8", 1/2", or 5/8" Barbs

Each outlet connects to a separate airline running to an individual diffuser or aeration location. Choose the outlet size that matches your airline tubing.  The Individual Air Outlets are shown in the below image as Letter C.

Example: The SC2-38 has one 3/4" inlet connection for the air supply line and two 3/8" outlet connections for two separate airline runs.

Important: The inlet and outlet barb sizes are different measurements. Always match your airline tubing to the appropriate connection when selecting a manifold.

Matala Heavy-Duty Manifold Detailed Measurements

The manifold features a 3/4-inch inlet hose barb that connects to the white L-shaped air supply tubing included with compatible Matala air pumps.

Matala Heavy-Duty Air Manifold configuration shown.
