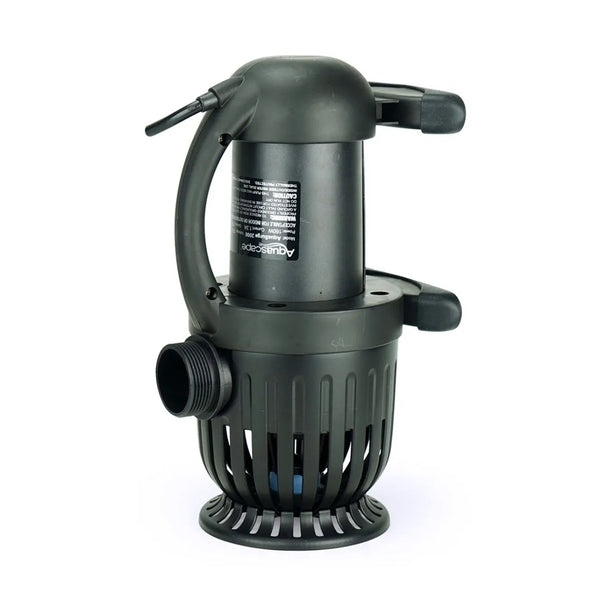

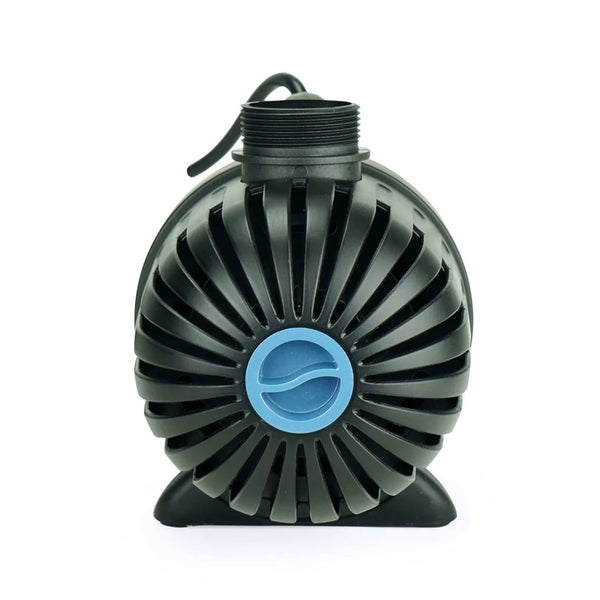

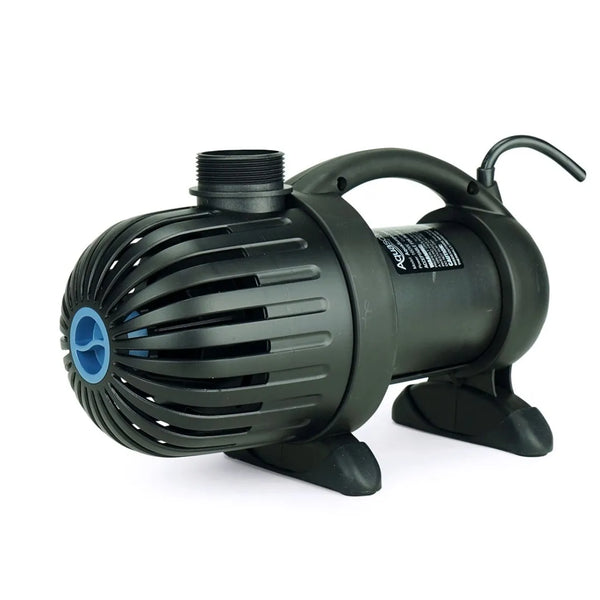

The Aquascape AquaSurge Pond Pump is a submersible waterfall and filter pump designed for use with skimmer systems, waterfall filters, and Pondless® Waterfall filter vaults. Available in flow rates from 2,000 to 5,000 GPH, AquaSurge pumps provide dependable water circulation for ponds and water features.
AquaSurge pumps use asynchronous motor technology to provide high torque and reliable performance, including applications with greater head height. Their oil-free design helps prevent pond contamination, while the ability to operate vertically or horizontally provides flexibility when installing the pump in a skimmer or other pond filtration system.
Aquascape AquaSurge Pond Pump Specifications
Aquascape AquaSurge pumps are energy-efficient asynchronous pond pumps designed for continuous operation in pond skimmers, waterfall filters, and Pondless® Waterfall systems. Compare the four standard AquaSurge models below to find the right combination of flow rate, pumping height, and energy use for your water feature.
| Specifications | AquaSurge 2000 | AquaSurge 3000 | AquaSurge 4000 | AquaSurge 5000 |
|---|---|---|---|---|
| Item Number | 91017 | 91018 | 91019 | 91020 |
| Maximum Flow Rate | 2,193 GPH | 3,196 GPH | 3,947 GPH | 5,284 GPH |
| Maximum Head Height | 12.5 ft | 15 ft | 18.5 ft | 24 ft |
| Power Consumption | 160 watts | 165 watts | 215 watts | 360 watts |
| Amperage | 1.3 amps | 1.4 amps | 1.82 amps | 3.0 amps |
| Motor Type | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Power Cord Length | 20 ft | 20 ft | 20 ft | 20 ft |
| Discharge Connection | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT |
| Recommended Pipe Diameter | 1.5 or 2 in | 1.5 or 2 in | 1.5 or 2 in | 2 in |
| Warranty | 3-year limited | 3-year limited | 3-year limited | 3-year limited |
AquaSurge Pond Pump Flow Rates at Different Head Heights
A pond pump's actual flow rate decreases as water is lifted higher. The pump curve below compares the estimated gallons per hour delivered by each AquaSurge model at different head heights. Use the chart to evaluate performance at your system's total pumping height rather than selecting a pump based only on its maximum flow rating.
AquaSurge® asynchronous skimmer and waterfall and filter pumps accomplish what most other pumps only aspre to achieve. The combination of energy-efficient performance, and flow and ease of maintenance, make this pump the ideal choice for discriminating pond owners. AquaSurge® pumps are ideal for use in Aquascape and other skimmer and falls filter systmes as well as Pondless® Waterfall filter vaults.
- Extremely energy-efficient, saving hundreds of dollars over traditional water pumps
- Asynchronous motor technology provides high torque, trouble-free performance at higher head heights
- Designed for use in skimmer and falls filter systems
- Oil-free design prevents pond contamination
- Provides years of trouble-free operation
- Made for continuous use
- Will not corrode or rust
- Rubber feet prevent noise and vibration
- Can be used vertically or horizontally
- AquaSurge Owner's Manual
