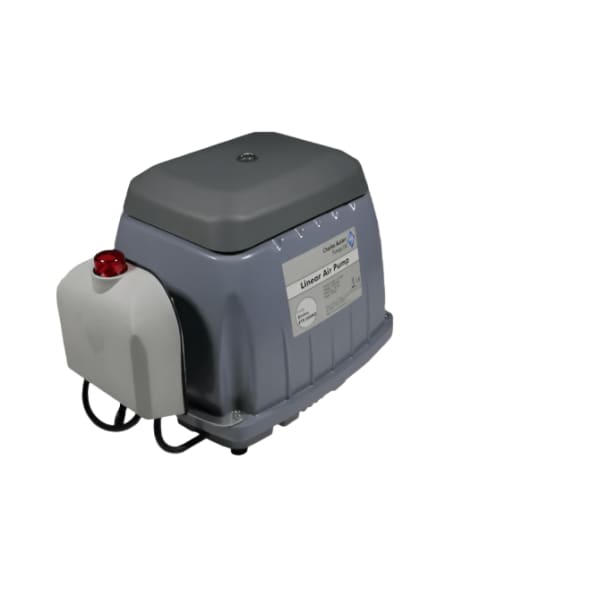

Blue Diamond ETA Series Air Pumps with Alarm have primarily been used in the septic industry but they can be used in any application where it is important to be promptly notified when the air pump has failed to supply air to your aquarium, pond or septic application.
- The ET series range of air pumps ensures that there is plenty of water movement in wastewater applications; this boosts oxygen levels in the water, allowing aerobic bacteria to decompose. When used in medical applications, the ET series provides a high flow at low pressure.
- Robust and compact construction - weatherproof
- Green drive technology offers energy efficient motors meaning low power consumption
- Supplied with a rubber elbow for easy fitting.
- The Blue Diamond ET series aerators are designed for relatively low pressure. Tubing should not exceed 130' and diffusers should only be used in water up to 7' deep.

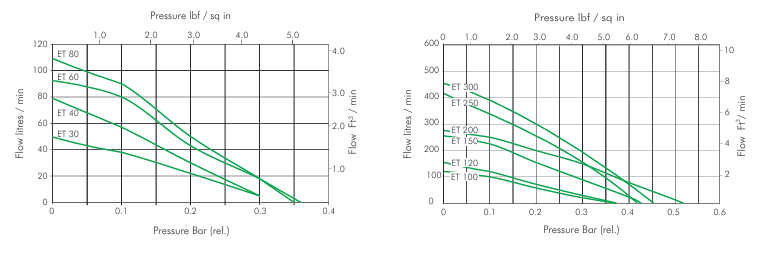

- Spec sheet
|
Model
|
Startup | Power | Performance | Outlet | Weight | Dimensions |
| ET40A | 30W | 25W | 40 LPM @ 0.15 bar | 14mm (0.55") Slip; 10mm (0.39") Barb | 8.8 lbs | 9" x 6" x 7.5" |
| 1.06 CFM@2.18 psi | ||||||
| ET60A | 55W | 30W | 60 LPM @ 0.17 bar | 18mm (0.71") Slip;12mm (0.47") Barb | 9.5 lbs | 8" x 6.5" x 6" |
| 1.41 CFM @2.18 psi | ||||||
| ET80A | 85W | 55W | 80 LPM @ 0.1 bar | 13.2 lbs | 8.5" x 7.5" x 7" | |
| 2.12 CFM @ 2.47 psi | ||||||
| ET100A | 105W | 75W | 100 LPM @ 0.1 bar | 15.4 lbs | 8.5" x 7.5" x 7" | |
| 2.82 CFM @1.45 psi | ||||||
| ET120A | 125W | 80W | 120 LPM @ 0.1 bar | 18.7 lbs | 9.5" x 8" x 7" | |
| 3.53 CFM @ 1.45 psi | ||||||
| ET150A | 125W | 90W | 150 LPM @ 0.15 bar | 20.9 lbs | 14" x 8.5" x 8" | |
| 4.24 CFM @1.45 psi | ||||||
| ET200A | 130W | 130W | 200 LPM @ 0.15 bar | 19.8 lbs | 14" x 8.5" x 8" | |
| 5.30 CFM @ 2.18 psi |
