EasyPro Pro-Clear Aire™ aeration compressors provide reliable, energy-efficient air for pond aeration and water-quality management. The four models range from the KPA25 through the KPA80, with different airflow capacity, pond-size recommendations, and maximum operating depths. Their dual linear diaphragm design provides quiet, oil-free operation for continuous aeration.
EasyPro™ Pro-Clear Aire™ Aeration Compressors Key Features
- Aluminum housing dissipates heat for longer product life
- No electricity in the water – safe for fish, pets and family
- Six-foot power cord – 115 volts
- One year warranty

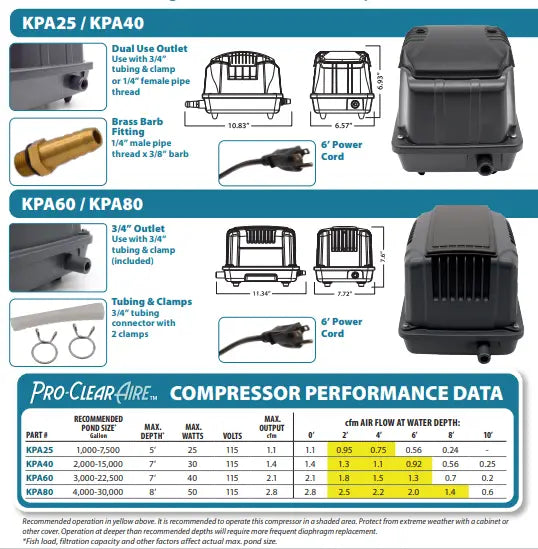

EasyPro Pro-Clear Aire Compressor Specifications
| Model | Recommended Pond Size | Max. Depth | Airflow at 0' | Airflow at 4' | Airflow at 6' | Airflow at 8' | Max. Watts | Outlet |
|---|---|---|---|---|---|---|---|---|
| KPA25 | 1,000–7,500 gal. | 5 ft. | 1.1 CFM | 0.75 CFM | 0.56 CFM | 0.24 CFM | 25W | 3/8" Barb / 1/4" FPT |
| KPA40 | 2,000–15,000 gal. | 7 ft. | 1.4 CFM | 1.1 CFM | 0.92 CFM | 0.56 CFM | 30W | 3/8" Barb / 1/4" FPT |
| KPA60 | 3,000–22,500 gal. | 7 ft. | 2.1 CFM | 1.5 CFM | 1.3 CFM | 0.70 CFM | 40W | 3/4" Outlet |
| KPA80 | 4,000–30,000 gal. | 8 ft. | 2.8 CFM | 2.2 CFM | 2.0 CFM | 1.4 CFM | 50W | 3/4" Outlet |
Airflow decreases as water depth increases because the compressor must overcome greater back pressure. Use the airflow rating at or near your actual diffuser depth when comparing models. EasyPro notes that operation deeper than the recommended depth can require more frequent diaphragm replacement. Actual pond capacity also varies with fish load, filtration, diffuser configuration, and other system factors.
How Do I Choose the Right EasyPro Pro-Clear Aire Compressor?
Choose the right Pro-Clear Aire compressor based on pond size, diffuser depth, required airflow, and the number of diffusers in your aeration system. EasyPro offers four models covering ponds from approximately 1,000 to 30,000 gallons. The KPA25 is rated for 1,000–7,500 gallons, while the KPA40, KPA60, and KPA80 are designed for progressively larger ponds. Keep in mind that actual pond capacity can vary depending on fish load, filtration, diffuser configuration, and other system factors.
How Does Water Depth Affect Pro-Clear Aire Performance?
Water depth creates back pressure that the compressor must overcome to push air through an underwater diffuser. As diffuser depth increases, available airflow decreases. The KPA25 has a maximum recommended depth of 5 feet, the KPA40 and KPA60 are rated to 7 feet, and the KPA80 is rated to 8 feet. For best performance, compare the airflow available at your actual diffuser depth rather than choosing a compressor based only on its maximum CFM rating. EasyPro also notes that operating deeper than the recommended depth can require more frequent diaphragm replacement.
How Do I Maintain an EasyPro Pro-Clear Aire Compressor?
The Pro-Clear Aire compressors use a dual linear diaphragm design with few moving parts, making routine maintenance relatively simple. Keep the compressor in a shaded, protected location and keep the air intake area clean and free of debris. Periodically inspect the air tubing, fittings, and diffusers for restrictions or damage, since blocked or restricted airflow can increase operating pressure. If airflow decreases or the compressor requires service, inspect the diaphragms and replace worn components as needed.

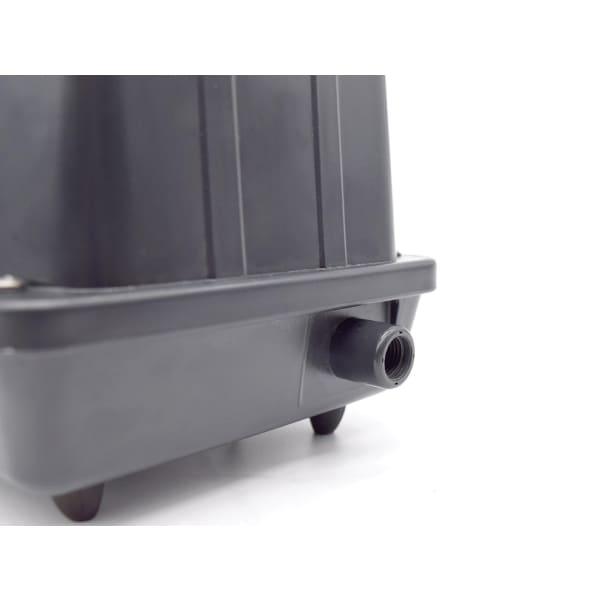

Dual Use Outlet and Pump Performance Shown
