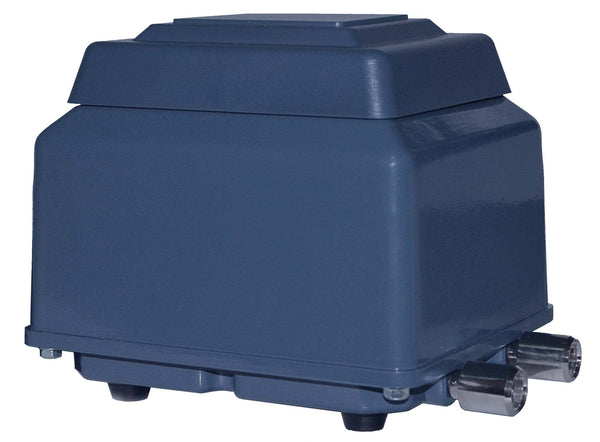

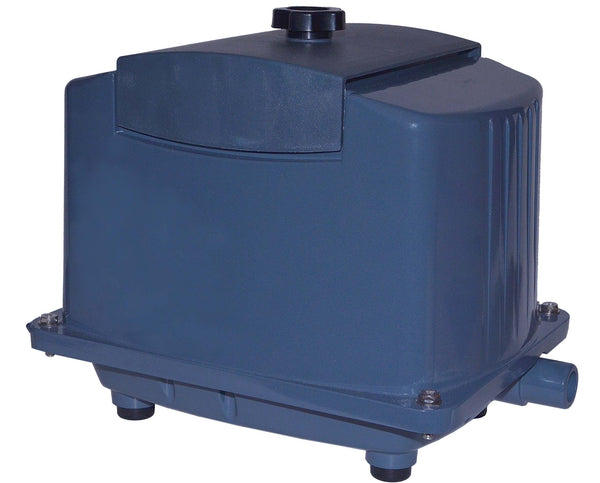

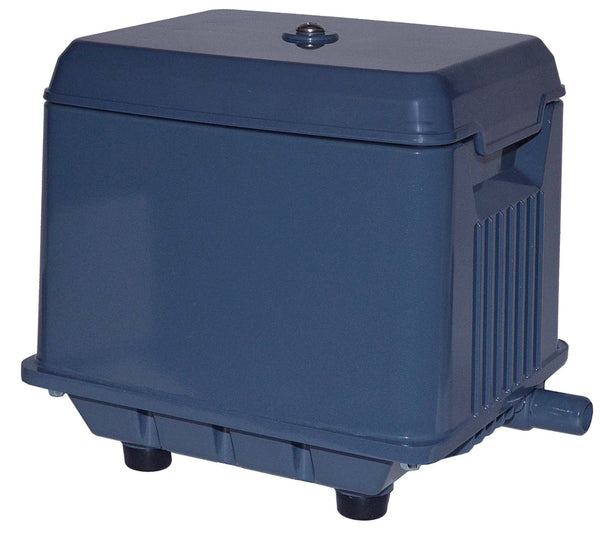

EasyPro™ Stratus KLC Linear Diaphragm Air Compressors

EasyPro™ SKU: KLC25

$237.59

Shipping calculated at checkout

EasyPro Stratus KLC Linear Diaphragm Air Compressors provide dependable, energy-efficient aeration for koi ponds, water gardens, fish tanks, and other aquatic applications. Available in six models, the KLC series offers airflow capacities ranging from 1.3 to 4.9 CFM, making it easier to select a compressor based on your pond's aeration requirements.

These oil-free compressors feature quiet operation, low energy consumption, and a durable design intended for continuous or intermittent use. Each model includes a six-foot power cord and rubber feet, with a three-year limited manufacturer warranty.

Choose from the KLC25, KLC40, KLC60, KLC80, KLC100, and KLC120 models based on the airflow capacity and operating pressure needed for your application.

EasyPro Stratus KLC Linear Diaphragm Air Compressor Comparison

Compare all six EasyPro Stratus KLC air compressor models by airflow capacity, power consumption, noise level, outlet size, and physical dimensions. Choose the model that best matches your pond aeration requirements.

Model Rated Airflow Open Airflow Power Noise Outlet Dimensions (W × L × H)
KLC25 26 LPM 37 LPM 23W 35 dB 5/8" 5.43" × 5.74" × 6.45"
KLC40 45 LPM 60 LPM 36W 35 dB 5/8" 6.81" × 8.78" × 7.91"
KLC60 65 LPM 90 LPM 60W 38 dB 5/8" 6.81" × 8.78" × 7.91"
KLC80 84 LPM 105 LPM 70W 38 dB 5/8" 6.81" × 8.78" × 7.91"
KLC100 102 LPM 120 LPM 112W 40 dB 5/8" 7.80" × 10.97" × 9.37"
KLC120 124 LPM 139 LPM 130W 42 dB 1" 7.80" × 10.97" × 9.37"

Dimensions: Width × Length × Height. Measurements are approximate manufacturer specifications.

Important Airflow Information

Rated airflow and open airflow are different measurements. Open airflow is measured without operating back pressure. Actual airflow decreases as water depth and system resistance increase. Always consider diffuser depth and the manufacturer's performance chart when selecting a compressor.

Noise Ratings: Noise levels are manufacturer-listed decibel ratings. Actual perceived sound can vary with installation, mounting surface, and surroundings. EasyPro does not specify a measurement distance in the published data sheet.

Choosing and Maintaining Your KLC Air Compressor

Select a compressor based on the total airflow required by your diffusers, the number of aeration locations, and the depth of the diffusers. Deeper water requires more operating pressure, which reduces available airflow. Compare rated performance at your intended operating pressure rather than relying on open-airflow specifications alone.

EasyPro KLC compressors use an oil-free linear diaphragm design. Periodically inspect and clean the air intake filter to help maintain airflow and performance. Diaphragms and other service components may require replacement over time, depending on operating conditions and maintenance.

Important: Rated airflow and open airflow are different measurements. Actual airflow decreases as water depth and system back pressure increase. Use the manufacturer's performance chart when selecting a compressor for a specific diffuser depth.

How Do I Choose the Right EasyPro KLC Air Compressor?

Choosing the right EasyPro KLC compressor depends on the amount of air your aeration system requires and the depth of your pond. Consider the number and type of air diffusers, the length of airline tubing, and the water depth where the diffusers will operate. Deeper water requires more air pressure, which reduces the compressor's available airflow. Compare the KLC models using their performance specifications rather than selecting a compressor based on open airflow alone.

Why Does Water Depth Affect Air Compressor Performance?

As an air diffuser is placed deeper underwater, the compressor must overcome greater water pressure to deliver air. This added back pressure reduces the amount of air the compressor can produce. EasyPro provides performance information showing how airflow changes at different water depths. Operating beyond the manufacturer's recommended depth can also cause more frequent diaphragm replacement.

What Maintenance Do EasyPro KLC Compressors Require?

EasyPro KLC compressors use an oil-free linear diaphragm design and require periodic inspection of the air intake filter. Keeping the filter clean helps maintain proper airflow and compressor performance. Replacement diaphragm kits and air filters are available for the KLC series, making routine maintenance and repairs easier.



EasyPro™ Stratus KLC Linear Diaphragm Air Compressor Specs

EasyPro Stratus KLC Linear Diaphragm Air Compressor Specs

EasyPro™ Stratus KLC Linear Diaphragm Air Compressor Performance Curves

Understanding the Performance Curve

As water depth increases, the compressor must overcome greater back pressure and available airflow decreases. The dashed region on EasyPro's performance curves indicates operating conditions where the compressor will require more frequent diaphragm replacement. Select a compressor that provides the required airflow at your actual diffuser depth rather than relying on maximum or open-flow ratings alone.
