Evolution Aqua Airtech™ Linear Diaphragm Air Pumps

Evolution Aqua SKU: AIRPUMP70

No reviews

$296.99

Shipping calculated at checkout

  • For use when aerating ponds
  • Provides consistent levels of oxygen in ponds
  • High performance, reliable pumps
  • Thermal protection as standard
  • 120 Volts
  • Five models available
Specification AirPump 70 Complete Kit AirPump 75 AirPump 95 AirPump 130 AirPump 150
Maximum Output lpm 70 75 95 130 150
Maximum Output (USA) 70 lpm/ 2.47 cfm 75/ 2.65 cfm 95 lpm/ 3.54 cfm 130 lpm/ 4.59 cfm 155 lpm/ 5.47 cfm
Output at 1m Depth - lpm 52 59 78 110 130
Output at 1m Depth - USA 52 52 78 115 135
Max. operating depth (USA) 4.2m/13.8 ft 4.4m/14.3 ft 4.5m/14.8 ft 5.0m/16.4 ft 5.6m/ 18.4 ft
Power Usage - Watts 34 44 62 88 106
Noise level - dBA <46 <46 <47 <50 <50
Voltage (VAC) 220 - 240V 220 - 240V 220 - 240V 220 - 240V 220 - 240V
Voltage (VAC) 110 - 120V 110 - 120V 110 - 120V 110 - 120V 110 - 120V

Models:

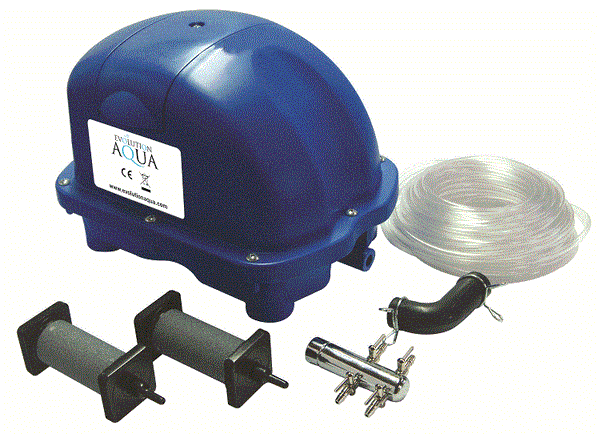

Airpump 70 Kit
Max output: 70 LPM
Output at 1 m depth:  52 LPM
Max operating depth: 10.5 ft
Power usage:  34 Watts
Noise level:  <46 dBa
Operating range:0.05 to 0.2 kg/cm2

Compressor Rated Flow 1.52 CFM @ 1.84 psi

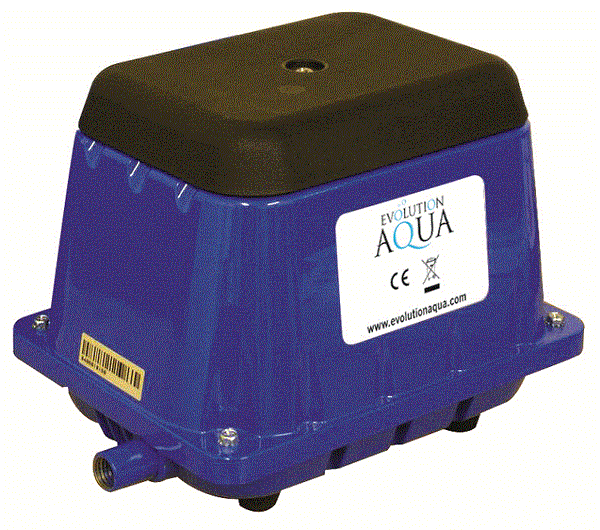

Airpump 75 - Pump Only
Max output: 75 LPM
Output at 1 m depth:  59 LPM
Max operating depth: 12.8 ft
Power usage:  44 Watts
Noise level:  <46 dBa
Operating range:0.05 to 0.2 kg/cm2

Compressor Rated Flow 1.66 CFM @ 1.85 psi


Airpump 95 - Pump Only
Max output: 95 LPM
Output at 1 m depth:  78 LPM
Max operating depth: 14.3ft
Power usage:  62 Watts
Noise level:  <47 dBa
Operating range:0.1 to 0.25 kg/cm2

Compressor Rated Flow 2.4 CFM @ 2.13 psi

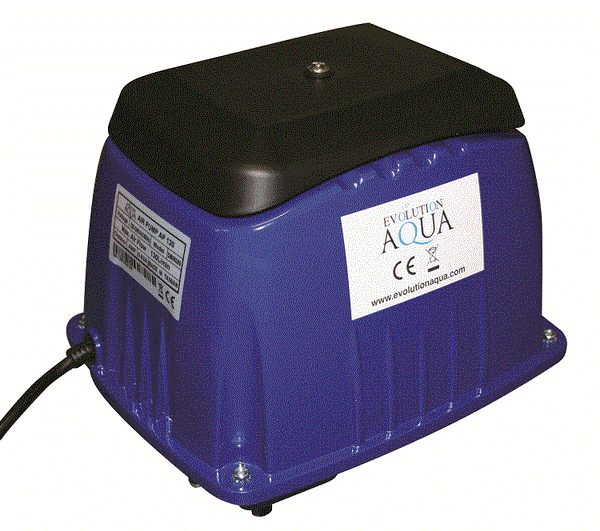

Airpump 130 - Pump Only
Max output: 130 LPM
Output at 1 m depth:  110 LPM
Max operating depth: 15.4ft
Power usage:  88 Watts
Noise level:  <50 dBa
Operating range:0.1 to 0.25 kg/cm2

Compressor Rated Flow 2.93 CFM @ 2.56 psi


Airpump 150 - Pump Only
Max output: 150 LPM
Output at 1 m depth:  130 LPM
Max operating depth: 18ft
Power usage:  106 Watts
Noise level:  <50 dBa
Operating range:0.1 to 0.25 kg/cm2

Compressor Rated Flow 3.53 CFM @ 2.56 psi



Replacement Parts:
