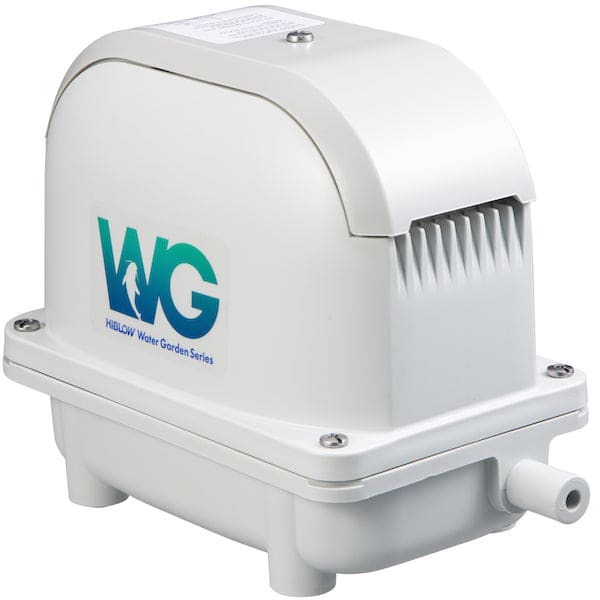

HIBLOWยฎ WG-Series air pumps provide reliable, energy-efficient aeration for ponds up to 1/2 acre. These quiet, oil-free linear diaphragm pumps are designed for pond aeration, water circulation, and maintaining healthy oxygen levels for fish and other aquatic life.
The WG-Series includes the WG-2, WG-3, and WG-4, with different airflow capacities for different pond sizes and aeration requirements. Use the comparison chart below to choose the right HIBLOW air pump for your pond size, water depth, and aeration setup.
HIBLOW WG-Series Air Pump Features
- Oil-free operation eliminates danger of contamination in your pond!
- Linear diaphragm design for quick, inexpensive repair of worn pumps (Pumps can be rebuilt a couple of times for extended use!)
- Includes pressure tap location for external alarm sensor
- These 120vAc / 60Hz pumps are UL Listed
- Outside diameter of outlet is 18mm (0.71")
- Includes a rubber elbow to adapt to 3/8" ID tubing - shown below
- 1 Year Manufacturer Warranty
HIBLOWยฎ WG-Series Air Pump Specifications
| Specification | WG-2 | WG-3 | WG-4 |
|---|---|---|---|
| Recommended Pond Size | Up to 16,000 gallons | Up to 1/4 acre | Up to 1/2 acre |
| Maximum Depth | 6โ8 ft. | 6โ8 ft. | 6โ8 ft. |
| Operating Performance | 40 LPM @ 12.8 kPa 1.41 CFM @ 1.86 PSI |
60 LPM @ 14.7 kPa 2.12 CFM @ 2.13 PSI |
80 LPM @ 14.7 kPa 2.82 CFM @ 2.13 PSI |
| Power Consumption | 28 W | 45 W | 65 W |
|
Noise Level (dBA @ 1 m.) |
40 dBA | 45 dBA | 45 dBA |
| Hose Connector Included | 90ยฐ L-Tube 5/8" ID |
90ยฐ L-Tube 5/8" ID |
90ยฐ L-Tube 5/8" ID |
| Barb Fitting Size | 5/8" OD | 5/8" OD | 5/8" OD |
HIBLOW pump performance depends on water depth, diffuser type, airline length, backpressure, and other system conditions. Pond-size recommendations are general guidelines.
Which HIBLOW WG-Series Air Pump Should I Choose?
Choose the WG-2 for smaller ponds and water gardens, the WG-3 for ponds up to 1/4 acre, or the WG-4 for ponds up to 1/2 acre. The pump size you need can also depend on water depth, diffuser type, airline length, and the number of diffusers. For deeper ponds or more demanding pond aeration systems, a larger HIBLOW pump may be a better choice.
Choosing the Right HIBLOW Pump for Your Pond
Choosing the right HIBLOW pond aeration pump depends on more than pond size alone. Water depth, diffuser type, airline length, and the number of diffusers all affect the airflow and pressure required from the pump. For the best results, select a HIBLOW model that provides adequate airflow at the operating depth and system pressure of your aeration setup.ย Need help sizing a WG-Series & diffuser to your pond size?ย Check out our interactive quiz.
Benefits of Pond Aeration
Proper pond aeration helps circulate and oxygenate the water throughout the pond, creating a healthier environment for fish and other aquatic life. Aeration can also help reduce stagnant areas, improve water circulation, and support natural decomposition of organic matter. A properly sized pond aeration system is especially important in deeper ponds or ponds with high fish and organic loads.
Aeration System Recommendations for Best Results
- Keep the pump covered and, in the shade, and allow for enough air circulation around the pump.
- 1/2โณ ID tubing/ weighted line is suggested for distances between 50โฒ-100โฒ and 3/4โณ ID beyond 100โฒ.
- You may consider using a โYโ connection instead of a โTโ connection when splitting the line for multiple diffusers to reduce backpressure.
- Use medium bubble diffusers to limit backpressure and increase air flow. Place each at the same depth or use ball valves to even out the air flow/ pressure.

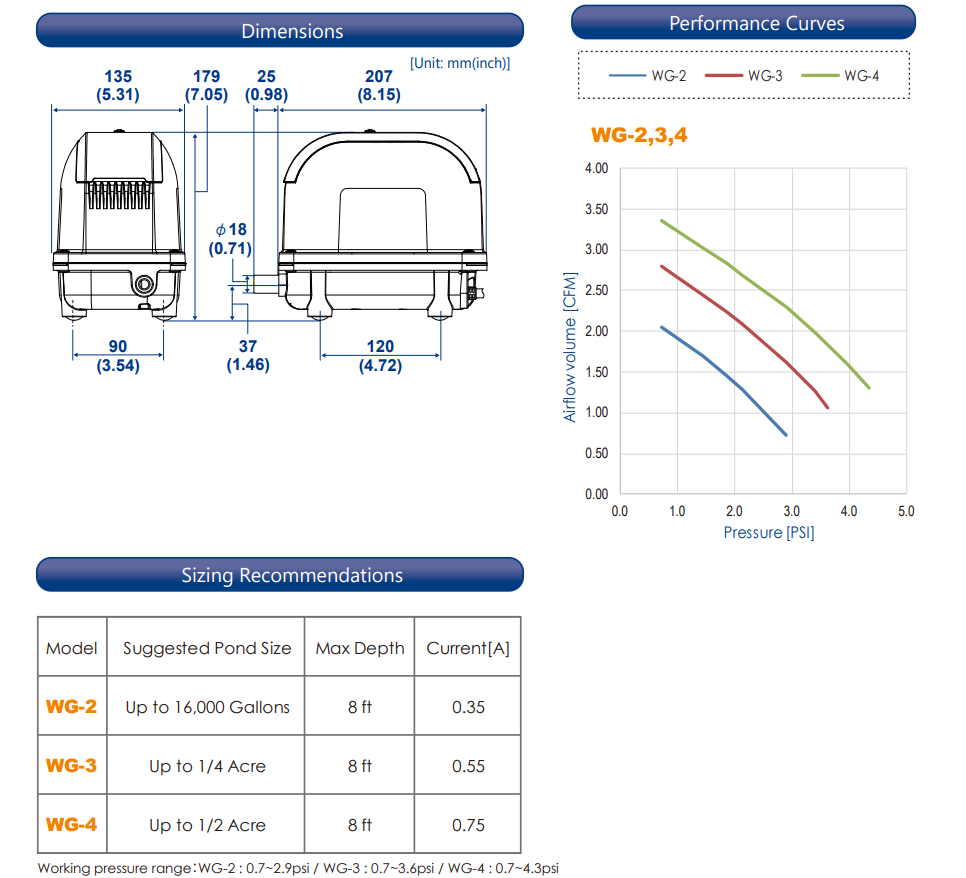

HIBLOW WG-Series Air Pump Dimensions
The HIBLOW WG-Series pumps share a compact design, making it easy to plan installation space before choosing your pump.
