Kasco® Home Series Diffused Aeration

Kasco® Home Series Diffused Aeration utilizes a shore-mounted compressor, air is continuously pumped through tubing lines that run to a single-loop diffuser on the pond bottom. The air is then released upward, creating non-stop water movement and mixing, which is vital in eliminating and preventing the most common water quality issues.

• Quiet operation allows system to blend with backyard environment

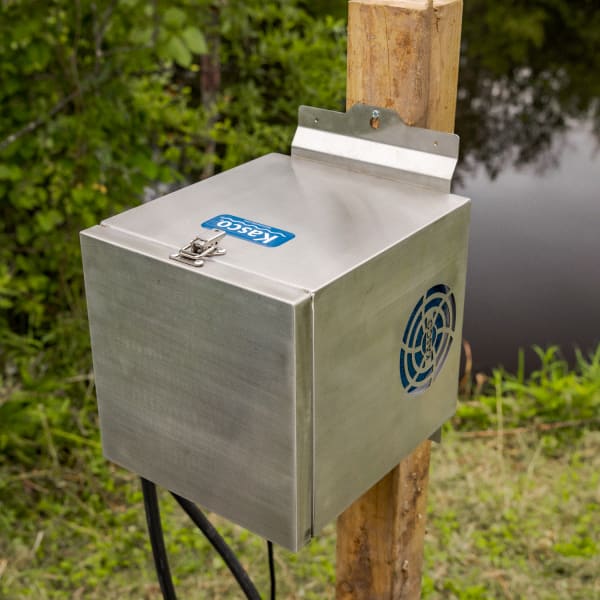

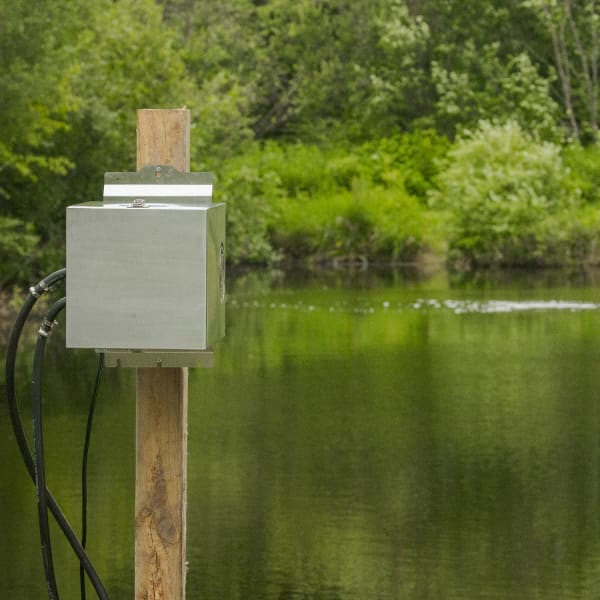

• Included Cabinet can be mounted on the ground or on a vertical structure using the optional mounting bracket

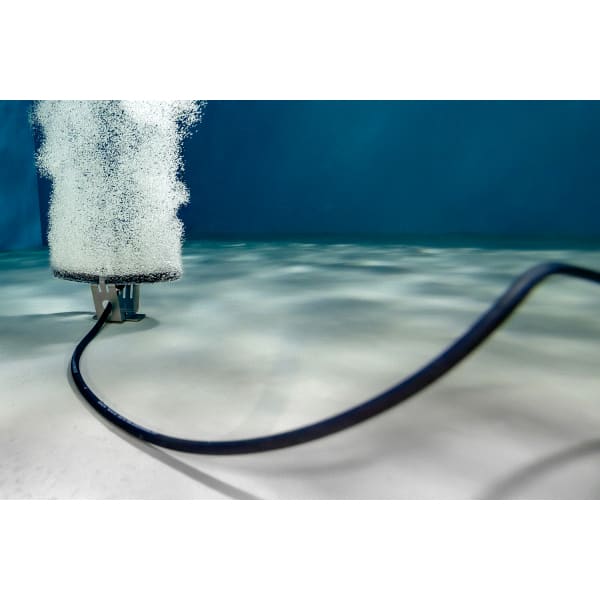

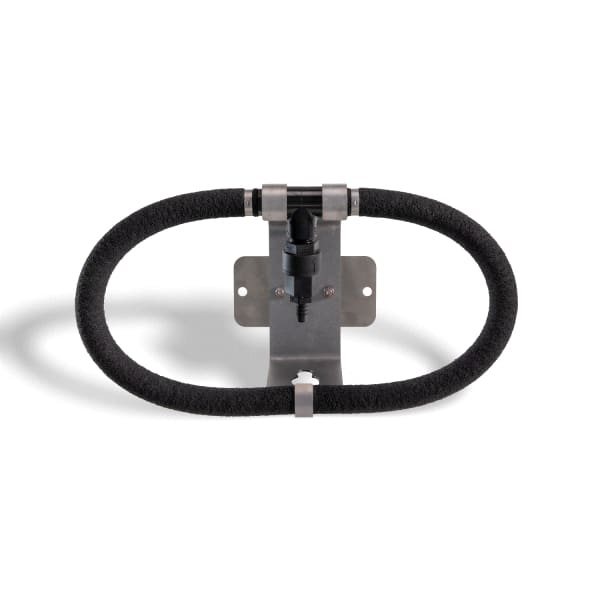

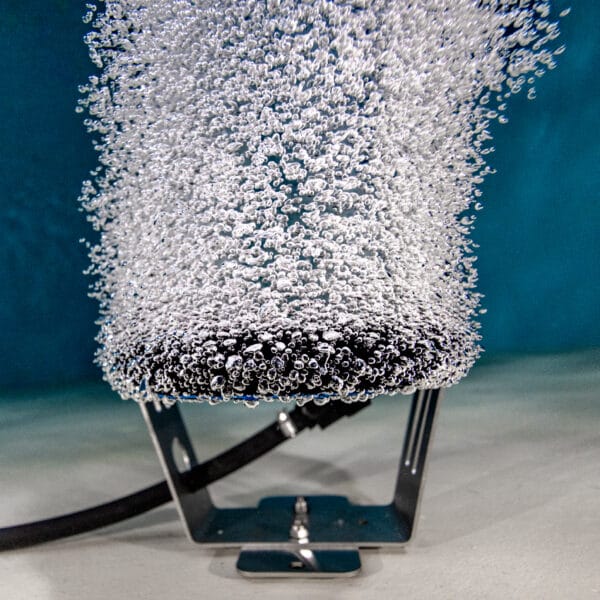

• Single-loop diffuser provides maximum water movement
• Reliable in tough, outdoor conditions
• No electricity required in the water
• Cleans and clarifies pond environment for an inviting, beautiful atmosphere

• Designed for continuous water movement to eliminate and prevent weed and algae overgrowth, and other common water quality issues

  Warranty periods: Diffuser - Lifetime, Cabinet - 2 years, Tubing - 15 years, Compressor Motor, Piston Cups , Cylinders - 2 years

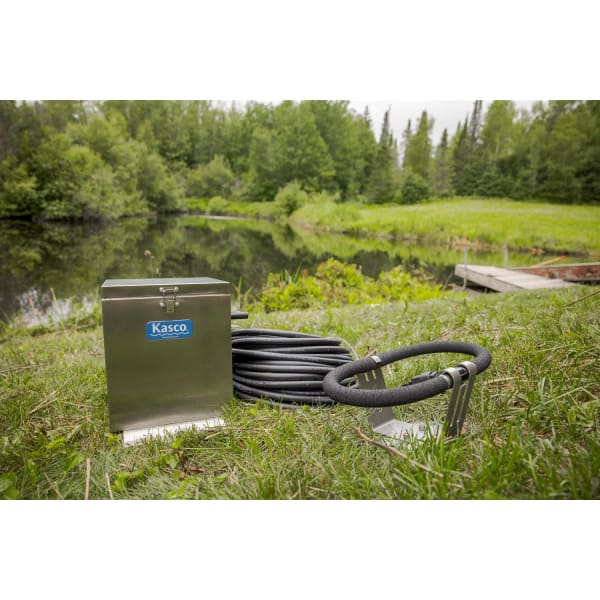

Packages Include

• 1 or 2 single-loop diffuser(s)

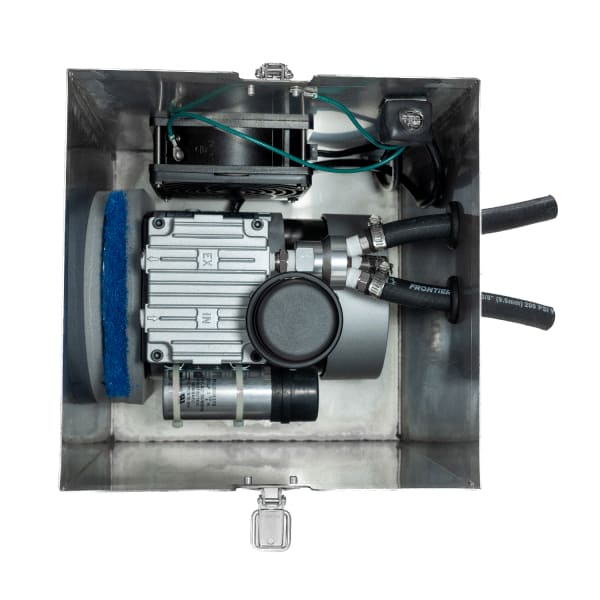

• 1/4HP compressor

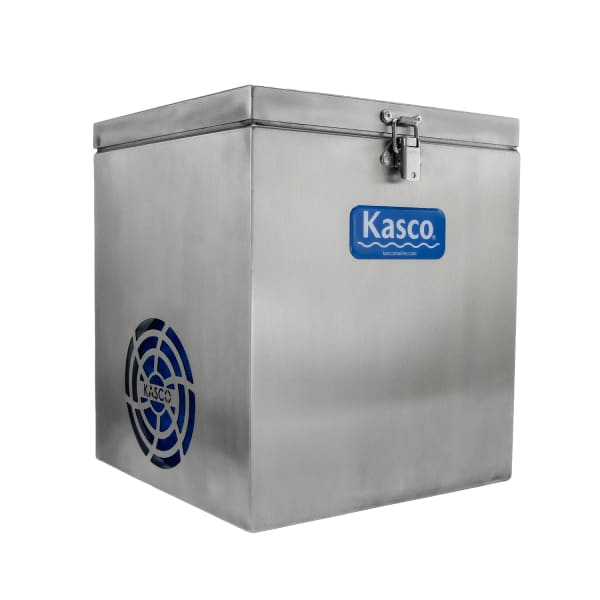

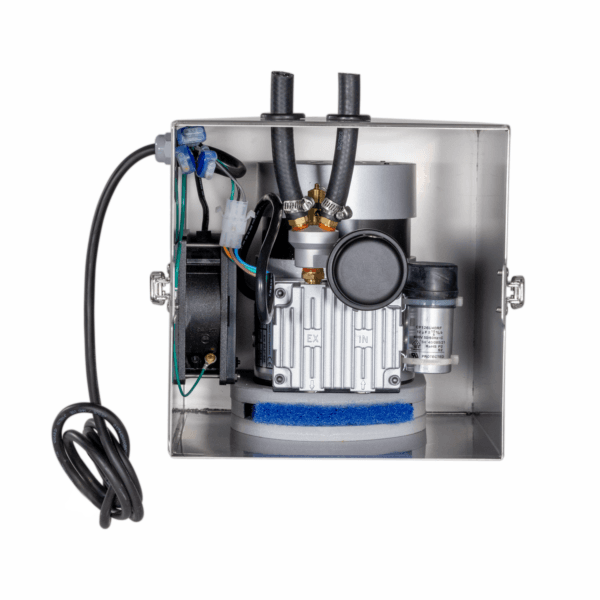

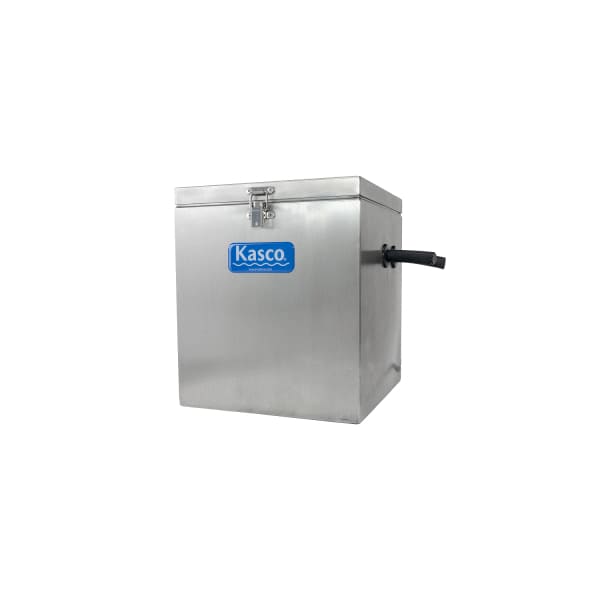

• Stainless steel compressor cabinet
• SureSink weighted tubing
• Ground mounting is standard but an optional mounting bracket (purchased separately with part number 774440) Post IS NOT included.

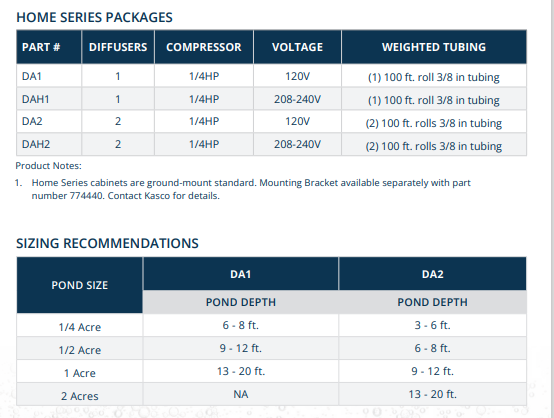

Part Number	Diffusers	Compressor	Voltage	Weighted Tubing
DA1	1	1/4 HP	120V	(1) 100' roll of 3/8" tubing
DAH1	1	1/4 HP	230V	(1) 100' roll of 3/8" tubing
DA2	2	1/4 HP	120V	(2) 100' rolls of 3/8" tubing
DAH2	2	1/4 HP	230V	(2) 100' rolls of 3/8" tubing

Sizing Recommendations
Pond Size	DA1	DA2
	Pond Depth	Pond Depth
1/4 Acre	1.8 - 2.5 m/ 5.9 - 8.2 ft	.9 - 1.8 m/3 - 5.9 ft
1/2 Acre	2.5 - 3.7 m/8.2 - 12.1 ft	1.8 - 2.5 m/5.9 - 8.2 ft
1 Acre	3.7 - 6 m/ 12.1 - 19.6 ft	2.5 - 3.7 m/ 8.2 - 12.1 ft
2 Acre	-	3.7- 6 m/ 12.1 - 19.6 ft
