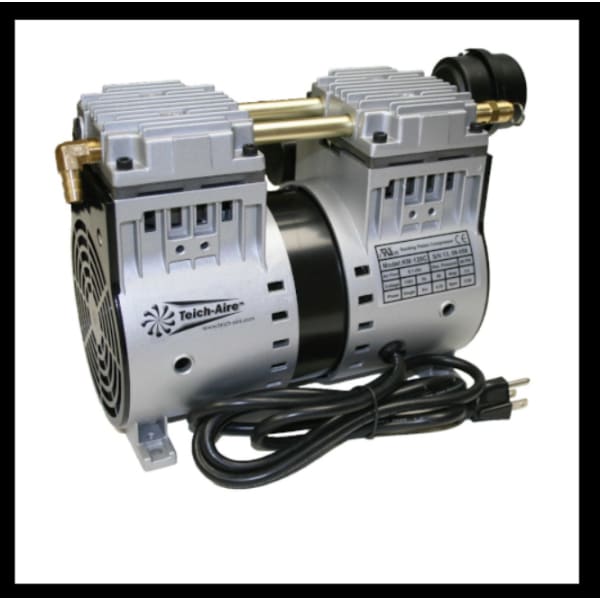

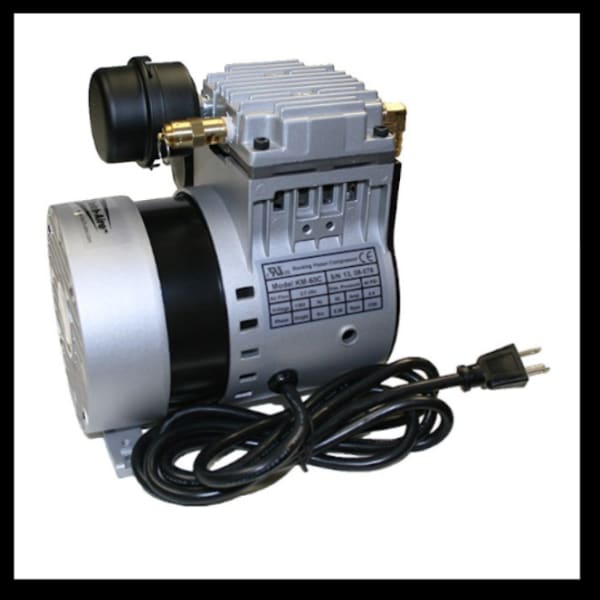

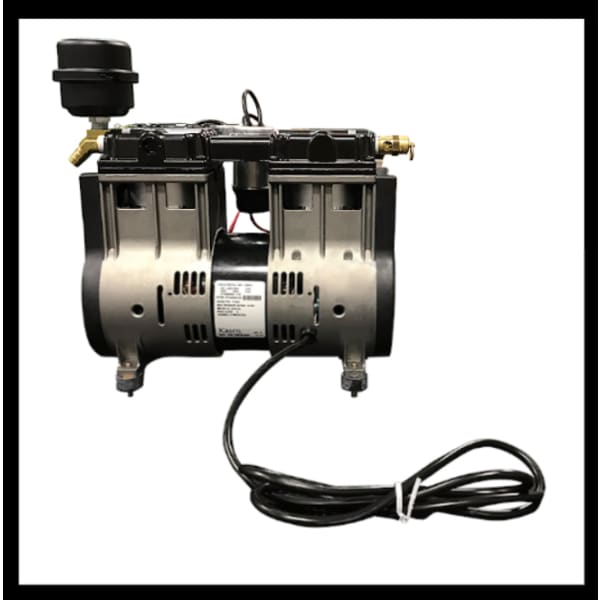

Teich-Aireâ„¢ Rocking Piston Compressors are designed and built to meet the demands of continuous-duty, year-round, large aeration applications. Available in 1/4, 1/2, or 3/4HP, these oil-less piston compressors can be used to replace or upgrade the compressor in our Robust-Aireâ„¢ Diffused Aeration Systems.
These compressors offer reliability and performance in applications such as ponds and lakes, water treatment systems, golf course ponds, fish farms, harsh industrial environments and many more.
Product Features
- 115 or 208-240V, 50Hz or 60Hz power options
- 208-240V models have CE
- Every model is UL / CSA recognized
- Quiet operation
- 3-year warranty
Package Includes
- 40 PSI pressure relief valve
- Vibration mounts
- Intake air filter assembly
- Brass hose fitting
- 6 ft. power cord
- Thermal overload protection
- Ramped internal valve plate to allow for restart under load
- Owner's Manual
Specs
| Part Number | HP | Frequency | Pressure Relief Valve Size | Voltage | Amp @ 0 PSI | Amp @ 20 PSI |
|---|---|---|---|---|---|---|
| KM-60C | 1/4 | 60 | 1/4" NPT | 115 | 2.2 | 3.2 |
| KM-60HC | 1/4 | 50/60 | 1/4" NPT | 208-240 | 1.1 | 1.6 |
| KM-120C | 1/2 | 60 | 1/4" NPT | 115 | 3 | 4 |
| KM-120HC | 1/2 | 50/60 | 1/4" NPT | 208-240 | 1.5 | 2 |
| KM-200C | 3/4 | 60 | 3/8" NPT | 115 | 5.4 | 6.9 |
| KM-200HC | 3/4 | 50/60 | 3/8" NPT | 208-240 | 3.1 | 3.7 |
Â
Performance Chart
| Part Number | CFM @ 0 PSI | CFM @ 10 PSI | CFM @ 15 PSI | CFM @ 20 PSI | CFM @ 25 PSI | CFM @ 30 PSI | CFM @ 40 PSI | CFM @ 50 PSI |
|---|---|---|---|---|---|---|---|---|
| KM-60C | 3.8 | 3.2 | 3.1 | 2.9 | 2.7 | 2.6 | 2.4 | 2.2 |
| KM-60HC | 3.8 | 3.2 | 3.1 | 2/9 | 2.7 | 2.6 | 2.4 | 2.2 |
| KM-120C | 5.5 | 4.8 | 4.5 | 4.2 | 4.0 | 3.6 | 3.2 | 2.7 |
| KM-120HC | 5.5 | 4.8 | 4.5 | 4.2 | 4.0 | 3.6 | 3.2 | 2.7 |
| KM-200C | 7.4 | 6.8 | 6.7 | 6.4 | 6.2 | 6.0 | 5.6 | 5.0 |
| KM-200HC | 7.4 | 6.8 | 6.7 | 6.4 | 6.2 | 6.0 | 5.6 | 5.0 |
Â
PLEASE NOTE: These Special-Order items dropship from the manufacturer. For the most current ship lead time, please see the "Announcement" section at the top of the Home Page. Free feel to email us at carol@best-planet.com or use the Chat Feature.Â
Â

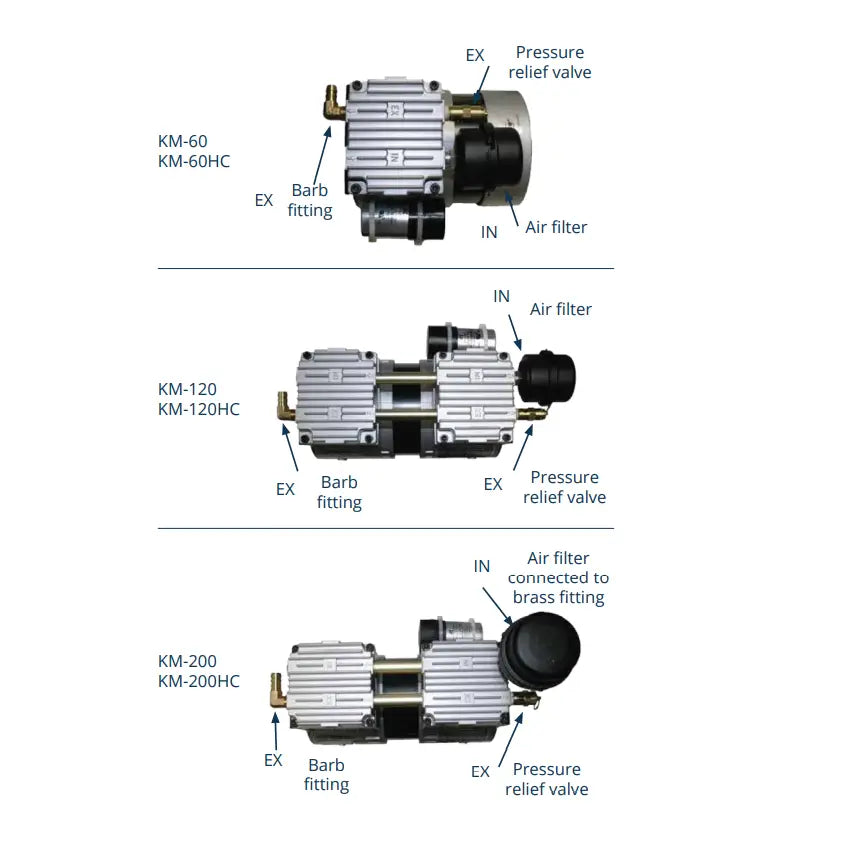

Kasco recommends adding a pressure relief valve (included) in an outlet port to bleed off excess pressure in case of a blockage.
