Replacement Parts available for Hakko Linear Diaphragm Air Pumps.
| Part | Name | Notes |
| FILTERS | ||
| HK-F25 | Small Disc Filter Pads for inlet to HK-25L (3pcs/set) | The white fabric Air Filter Pad for Matala / Hakko air pumps can be washed with fresh water and let dry. |
| AF-1/4 HK25L | 3" Air Filter 1/2" thread w/ L Tube for HK25L (optional filter) | |

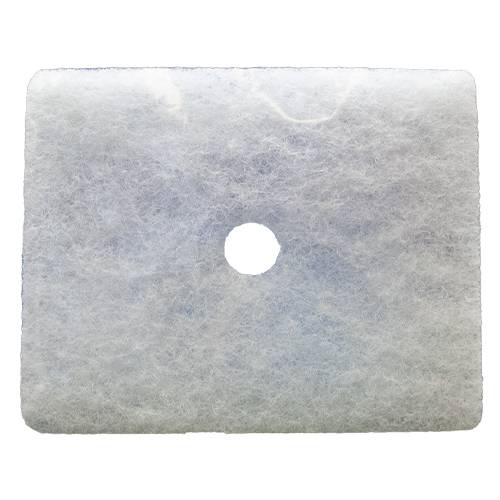

| HK-F40/60/80 | Filter Pad for HK-40L & 60L & 80L | The white fabric Air Filter Pad for Matala / Hakko air pumps can be washed with fresh water and let dry. |

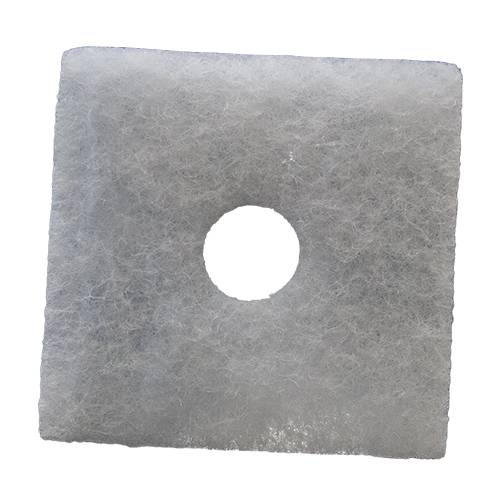

| HK-F100/120 | Filter Pad for HK-100L & 120L | The white fabric Air Filter Pad for Matala / Hakko air pumps can be washed with fresh water and let dry. |

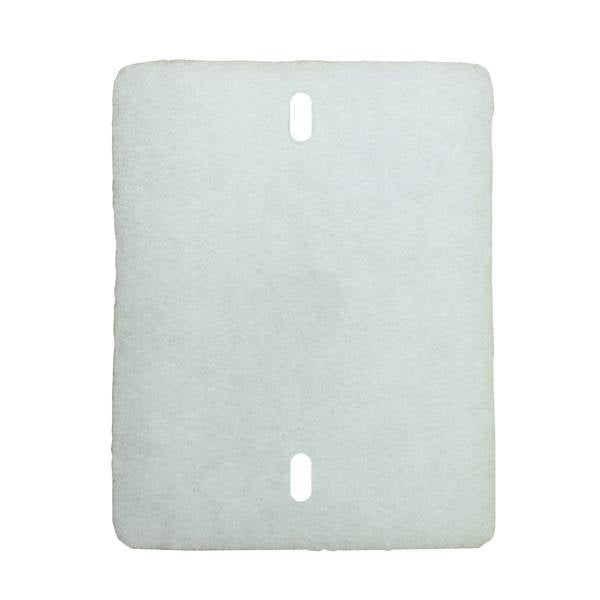

| HK-F150/200/250 | Filter Pad for HK-150L & 200L & 250L | The white fabric Air Filter Pad for Matala / Hakko air pumps can be washed with fresh water and let dry. |
| HK-F25LP/40LP | Filter Pad for HK-25LP & 40LP | The white fabric Air Filter Pad for Matala / Hakko air pumps can be washed with fresh water and let dry. |

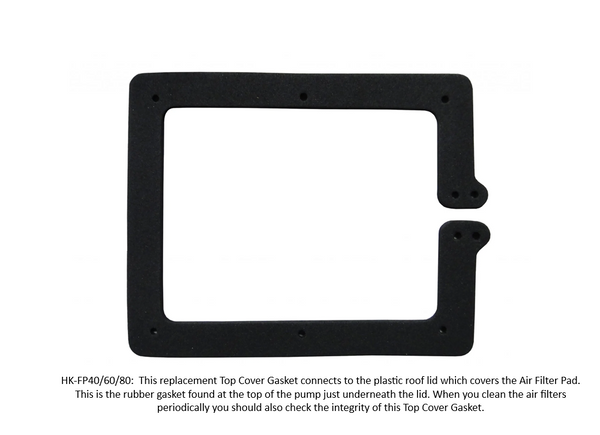

| HK-FP40/60/80 | Filter Cover Packing for HK-40L & 60L & 80L | This replacement Top Cover Gasket connects to the plastic roof lid which covers the Air Filter Pad. This is the rubber gasket found at the top of the pump just underneath the lid. When you clean the air filters periodically you should also check the integrity of this Top Cover Gasket. |
| Vibration Mount | ||

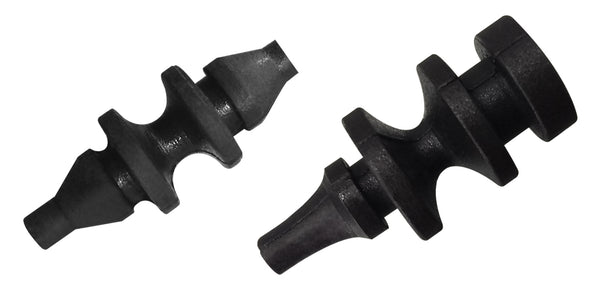

| HK-VM40/60/80 | Vibration Mount, 4pc/set for HK-40L & 60L & 80L | The 4 anti-vibration feet connect the Matala/Hakko air pump motor to the inside base. Please inspect and confirm that all 4 anti-vibration feet are intact and connected. If any of the anti-vibration feet are broken or disconnected, the air pump will not run balanced and will need frequent diaphragm replacement. |
| HK-VM100/120 | Vibration Mount, 4pc/set for HK-100L & 120L | |
| HK-VM150/200/250 | Vibration Mount, 8pc/set for HK-150L ~250L | |
| Gaskets | ||
| HK-GK40/60/80 | Lower Pump Cover Gasket for HK-40L & 60L & 80L | |
| HK-GK100/120 | Lower Pump Cover Gasket for HK-100L & 120L | |
| HK-GK25LP | Lower Pump Cover Gasket + Gasket | |
| HK-GK40LP | Lower Pump Cover Gasket + Gasket ) | |
| HK-LC40LP | Lower Pump Cover + Rubber Feet*4set | |
| L-Tubes | ||

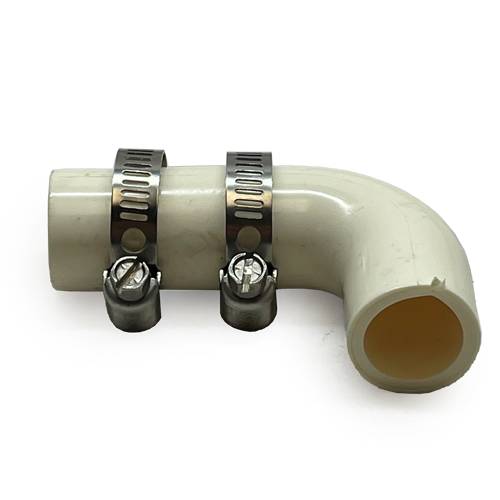

| HK-IT40/60/80 | Inner L-Tube*2pcs + Hose Clamp*2pcs | |
| HK-TC18 | Outer L-Tube 1pc + Clamp for HK-40L & 60L & 80L | |
| HK-TC26 | Outer Hose for HK-100L & 120L | |
| Safety Switch | ||
| HK-SS100/120 | Safety Switch for HK-100L & 120L | The Safety Switch is only used with the Hakko 100L and Hakko 120L air pumps. It is designed to protect the motor and magnet from damage. Under normal operation the diaphragms in your pump will gradually wear out or tear. The magnet is attached to the diaphragms. If the diaphragms fail then the magnet will be out of balance and will vibrate loudly. The safety switch senses the excess vibration and turns off the motor to save wear and tear on other parts. Sometimes during shipping a new pump may have been jarred enough to through out the safety switch. The brand new pump will not turn on right out of the box. Simply remove the top of pump cover and you will see the safety switch at the top of the motor. Notice the small circle with an arrow on it. Just use a coin or flat head screw driver and re-align the arrows. If re-aligning the arrows does not turn on the pump then you may need to purchase a new safety switch. Please check for loose wires. They are relatively simple to replace. |
| Air Pipe | ||
| HK-AP25 | Air Pipe (include 1pc of transparent O-ring ) for HK-25L | |
| Power Cords | ||
| HK-PC25/25LP | Power Cord for HK-25L & 25LP | |
| HK-PC40/40LP/60/80 | Power Cord for HK-40L & 40LP & 60L & 80L | |
| HK-PC100/120 | Power Cord for HK-100L & 120L | |
| HK-PC150/200/250 | Power Cord for HK-150L & 200L & 250L | |
| Stand | ||

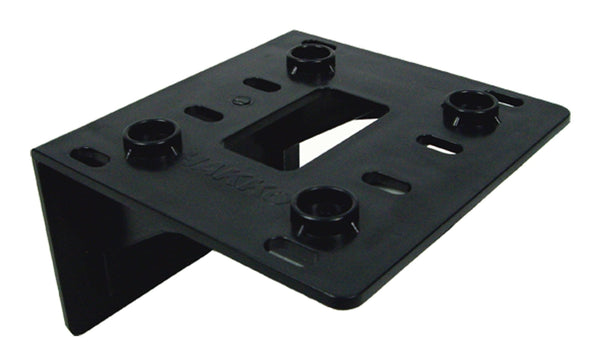

| HK-S40/80 | Stand for HK40/60/80 | This is an optional stand for your Matala / Hakko air pump. Mount the stand to a wall to keep your air pump in a safe location. |

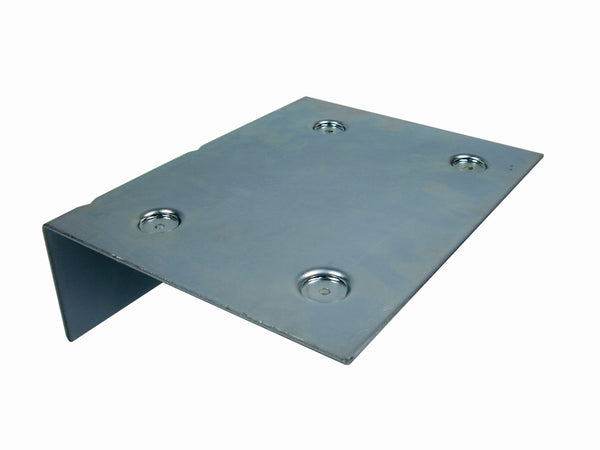

| HK-S100/120 | Stand for HK100/120 |
| Diaphragms | ||

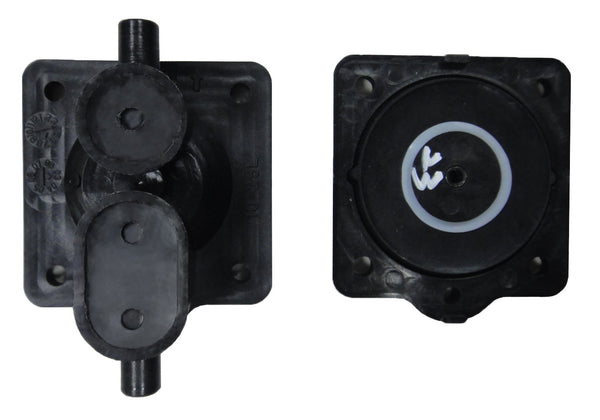

| HK-D25 | Replacement Diaphragm for HK-25 | Our rebuild diaphragm kits are simple to install. Refer to our trouble shooting section for directions on proper replacement procedure (See bottom of this page for links and videos). Tools you will need: – 1 medium phillips screwdriver – 1 small phillips screwdriver – 1 medium pair of pliers Note: If your diaphragms are blowing out frequently, you most likely have an excess back pressure problem in your design. Check that your air delivery tube is large diameter and no kinking is occuring. Check your air diffusers for clogging. Ceramic style air stones need cleaning with muriatic acid every 3 months typically. Check that the number of air diffusers is sufficient to handle the air output of your Hakko pump. Too few diffusers will create excess back pressure. Read our article on “Air Pump Troubleshooting and Tips” below. |
| HK-D40 | Replacement Diaphragm for HK-40 | |
| HK-D60/80 | Replacement Diaphragm for HK-60/80 | |

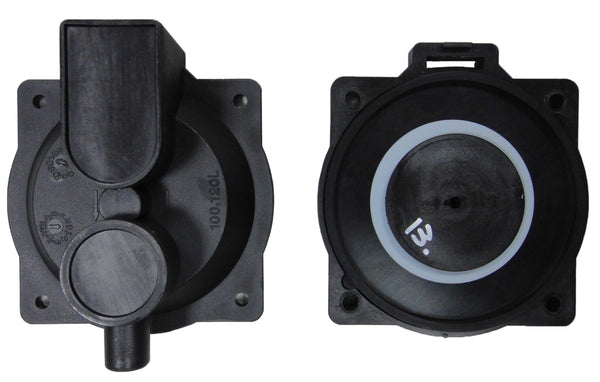

| HK-D100/120 | Replacement Diaphragm for HK-100/120 | |
| HK-D150/200/250 | Replacement Diaphragm for HK-150/200/250 | |
| Magnets | ||

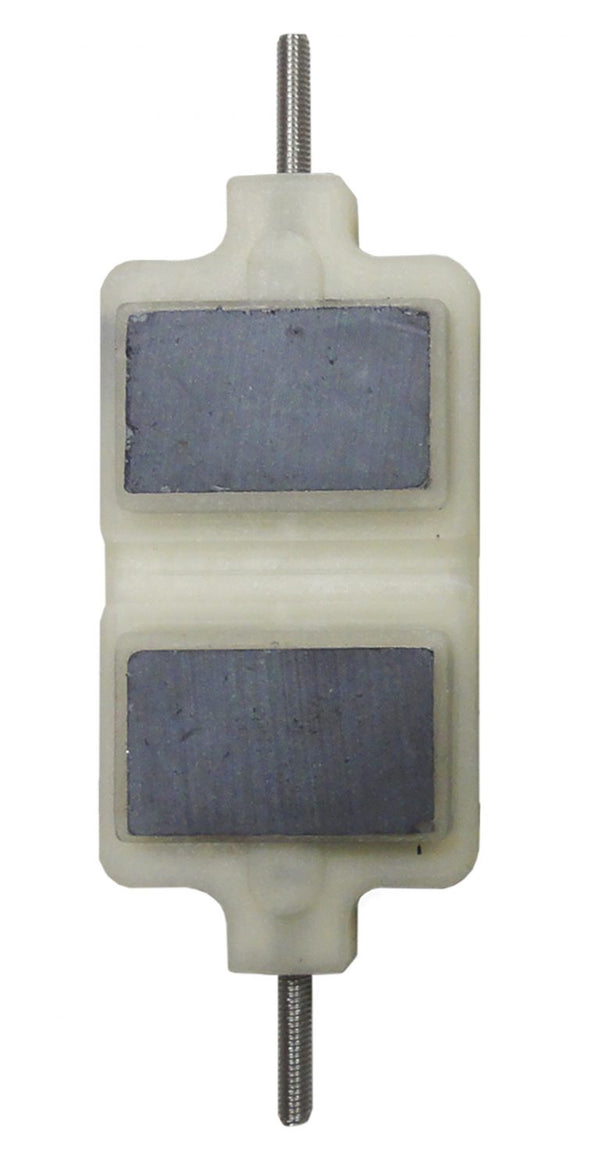

| HK-M25 | Replacement Magnet for HK-25 (1-piece) | The magnet is the part that moves back and forth between the diaphragms. It is held in place by the diaphragms. Typically, the magnet is very long lasting. However if you run the air pump with bad diaphragms for extended periods you could wear down the magnet. If you open the motor for repair and you find gray dust or small metal particles in and around the motor, you may need to replace the magnet. Always inspect the magnet for wear and tear when you replace your diaphragms. They are very easy to replace. See the helpful picture guide below “Air Pump Magnet Measurements”; which will help you identify the correct magnet if you are unsure. Read through the “Hakko Troubleshooting Tips and Information” below for more help. |

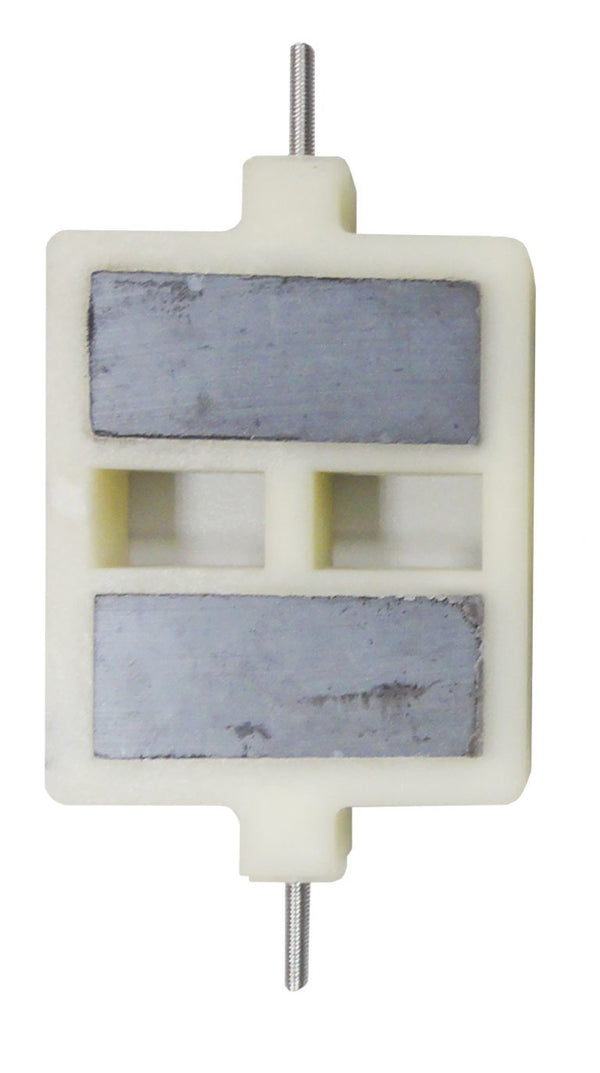

| HK-M40 | Replacement Magnet for HK-40 (1-piece) | |
| HK-M60/80 | Replacement Magnet for HK-60/80 (1-piece) | |

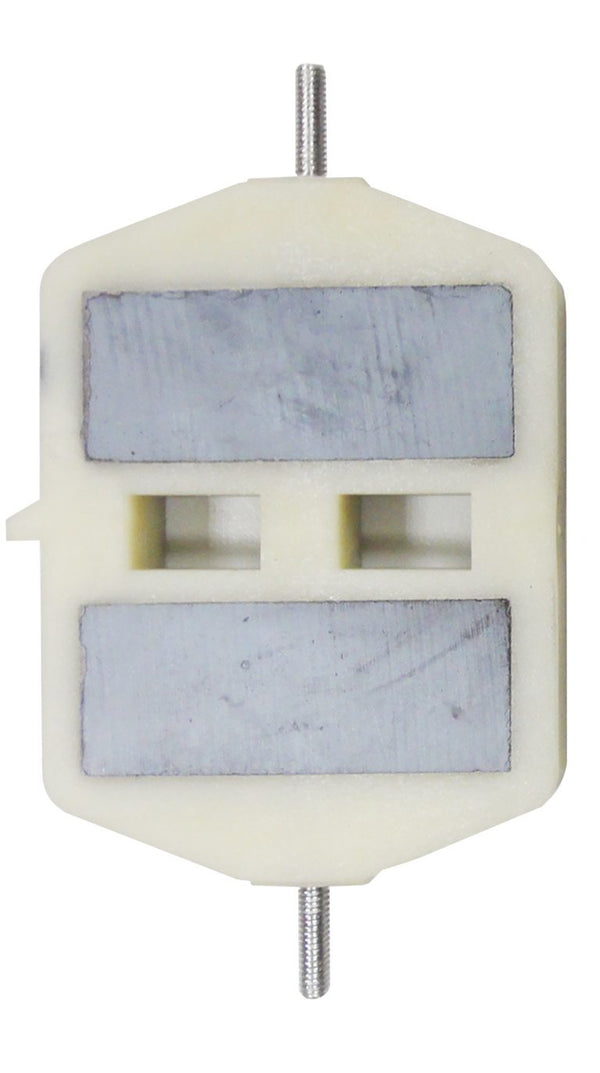

| HK-M80H | Replacement Magnet for HK-80H (1-piece) | |
| HK-M100/150 | Replacement Magnet for HK-100/150 (1-piece) | |

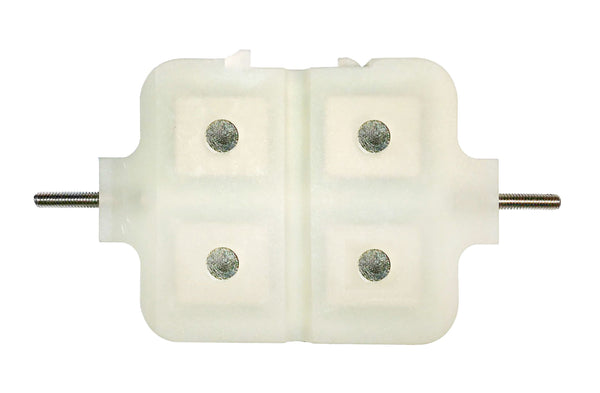

| HK-M120/120H/200 | Replacement Magnet for HK-120/120H/150 (1-piece) | |
| HK-M250 | Replacement Magnet for HK-250 (1-piece) |
Note regarding magnets:
- When ordering magnets for Hakko HK-200L, you need 2
- When ordering magnets for Hakko HK-250L, you need 2
