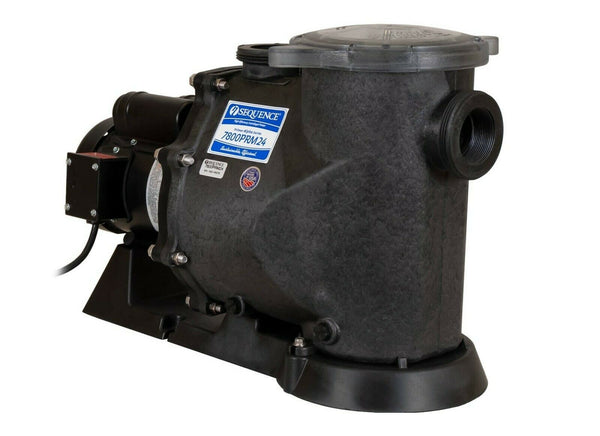

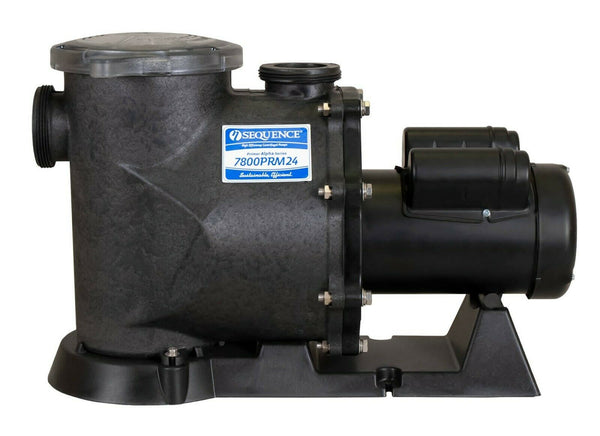

Sequence® Alpha Primer Series External Pumps

Sequence® SKU: 3200PRM15

$1,248.00

Shipping calculated at checkout

Only 5 left!

The Alpha Primer series integrates a basket-type pre-filter and self-priming capabilities into one efficient package for trouble-free operation. The motor is totally enclosed, fan-cooled for durability 115V or 230V with an 8-foot cord set. Five-year limited warranty.

Special features include an internal diffuser to allow for the displacement of trapped air. This type of pump will continue to move water even when there is some air in the line.

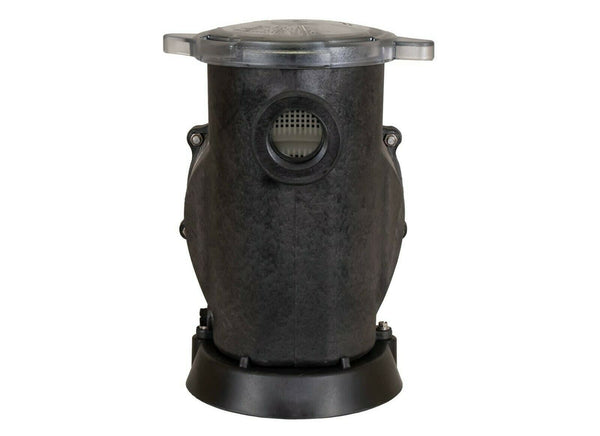

The integrated strainer basket on all primer units helps protect the internal rotating parts of the pump from damage due to external debris being pulled into the pump. The simple cover allows for quick cleaning.

Performance Data



MODEL INLET DISCHARGE MAX FLOW (GPH) MAX HEAD (FEET) MAX POWER (WATTS) MAX CURRENT (AMPS) @ (VOLTS) MOTOR HP MOTOR ENCLOSURE
3200PRM15 2″ 2″ 3200 15' 228 2.68 120 ½, ⅓ TEFC
5000PRM18 2″ 2″ 5000 18’ 310 3.27 120 ½, ⅓ TEFC
6800PRM19 2″ 2″ 6800 19' 369 3.93 115/230 ½, ⅓ TEFC
7800PRM24 2″ 2″ 7800 24' 504 5.02 115/230 ½, ⅓ TEFC



MODEL INLET DISCHARGE MAX FLOW (GPH) MAX HEAD (FEET) MAX POWER (WATTS) MAX CURRENT (AMPS) @ (VOLTS) MOTOR HP MOTOR ENCLOSURE
6000PRM60 2″ 2″ 6000 60’ 1418 8.74 230 2 ODP

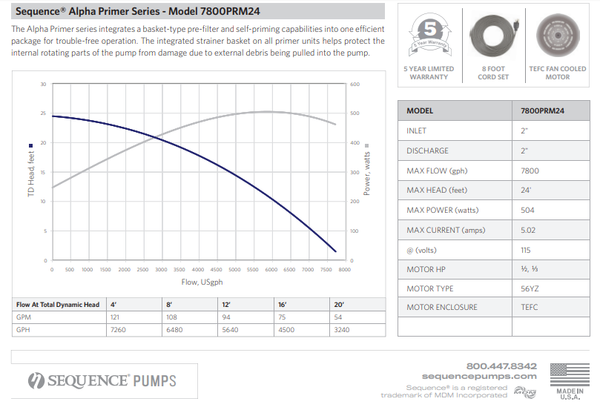

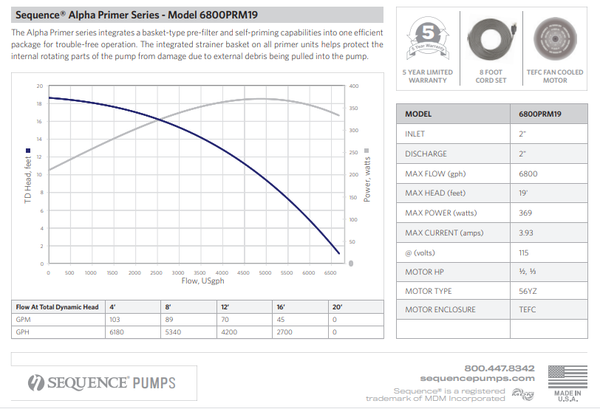

Sequence Alpha Primer Pump family performance curve



Alpha Primer Data Sheets

Alpha Primer Data Sheets

Service Manual
