• Models 2 through 18 incorporate an adjustable Venturi which adds Aeration into the nutrient rich water flow, stimulating root growth.
• 10’ Power Cord on all models
• Time proven Magnetic Drive Technology
• Energy efficient and Oil-Free
• In-line or Submersible Operation
• Models 2 through 7 include: 1/2” Barb x 1/2" NPT Fitting
• Models 9.5 through 18 include: 1/2” Barb x 3/4" NPT Fitting
• Models 24 and 36 include 1” Male NPT Outlet
• 5-Year Limited Warranty
| Model | Item # | Max Flow Rate | Watts/Amps | Inlet/Outlet |

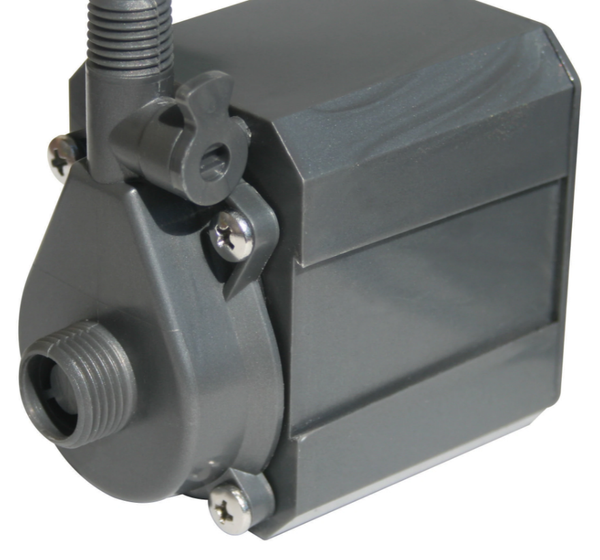

| Model 1.9 | 40120 | 190 GPH | 19/0.3 | 3/8” MPT Inlet and 1/4” MPT Outlet |

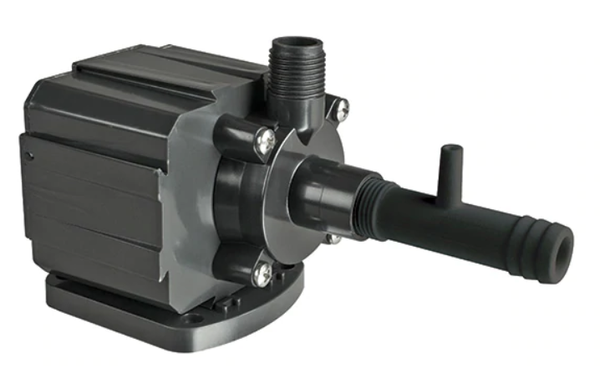

| Model 2 with Venturi | 40122 | 250 GPH | 24/0.4 | 1/2” FPT Inlet and MPT Outlet |
| Model 3 with Venturi | 40123 | 350 GPH | 35/0.6 | 1/2” FPT Inlet and MPT Outlet |
| Model 5 with Venturi | 40125 | 500 GPH | 45/0.9 | 1/2” FPT Inlet and MPT Outlet |
| Model 7 with Venturi | 40127 | 700 GPH | 70/1.6 | 1/2” FPT Inlet and MPT Outlet |
| Model 9.5 with Venturi | 40129 | 950 GPH | 93/1.33 | 3/4” FPT Inlet and MPT Outlet |
| Model 12 with Venturi | 40132 | 1200 GPH | 110/1.5 | 3/4” FPT Inlet and MPT Outlet |
| Model 18 with Venturi | 40138 | 1800 GPH | 145/1.55 | 3/4” FPT Inlet and MPT Outlet |

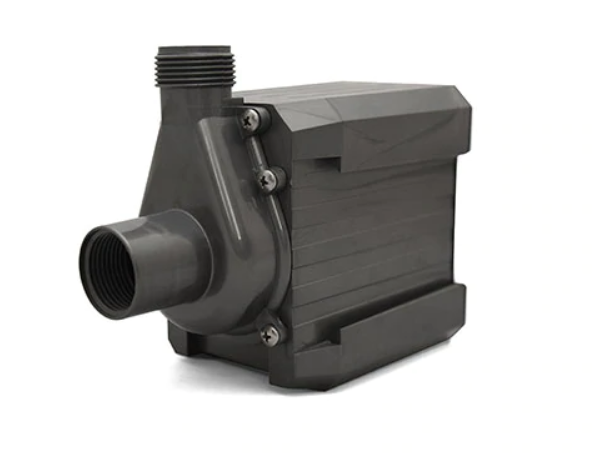

| Model 24 | 40140 | 2400 GPH | 237/2.2 | 1” FPT Inlet and MPT Outlet |
| Model 36 | 40145 | 3100 GPH | 256/3.0 | 1” FPT Inlet and MPT Outlet |
|
RECIRCULATING WATER & AIR PUMP SPECIFICATIONS |
||||||||
|
PUMP |
SHUT OFF |
FLOOD TABLE SIZES |
||||||
|
2x2 |
2x3 |
2x4 |
3x3 |
3x6 |
4x4 |
8x4 |
||
|
190 GPH |
7’ |
x |
|
|
|
|
|
|
|
250 GPH |
7’ |
x |
x |
|
|
|
|
|
|
350 GPH |
10.5’ |
|
x |
x |
|
|
|
|
|
500 GPH |
10.5’ |
|
|
x |
x |
|
|
|
|
700 GPH |
11.5’ |
|
|
x |
x |
|
|
|
|
950 GPH |
13.5’ |
|
|
|
|
x |
x |
|
|
1200 GPH |
13.5’ |
|
|
|
|
x |
x |
x |
|
1800 GPH |
16.5’ |
|
|
|
|
|
|
x |
|
2400 GPH |
17’ |
|
|
|
|
|
|
x |
|
3600 GPH |
22.5’ |
|
|
|
|
|
|
x |
