Atlantic® Typhoon Diaphragm Air Pumps

Atlantic® Oase SKU: TA1800

$152.99

Shipping calculated at checkout

Atlantic Typhoon Diaphragm Air Pumps provide dependable aeration for ponds, water gardens, and other aquatic applications. Available in the TA1800 and TA3600 models, these oil-free air pumps deliver airflow for maintaining oxygen levels during warmer months and helping keep areas of a pond free of ice during winter. Their aluminum housings help dissipate heat, while replaceable diaphragms and accessible air filters make routine maintenance easier. Compare airflow at different water depths, power consumption, and maximum operating depth to choose the right Typhoon air pump for your pond.

Atlantic Typhoon Air Pump Specifications

Specification TA1800 TA3600
Maximum Airflow 1.06 CFM 2.12 CFM
Airflow at 1 ft 0.88 CFM 1.91 CFM
Airflow at 2 ft 0.74 CFM 1.66 CFM
Airflow at 3 ft 0.60 CFM 1.41 CFM
Airflow at 4 ft 0.46 CFM 1.20 CFM
Airflow at 5 ft 0.32 CFM 0.99 CFM
Airflow at 6 ft 0.14 CFM 0.81 CFM
Airflow at 8 ft — 0.42 CFM
Airflow at 10 ft — 0.07 CFM
Power Consumption 25 Watts 35 Watts
Maximum Operating Depth 7 ft 11 ft
Maximum Pressure 3 PSI 5 PSI
Voltage 115V 115V
Power Cord 6 ft 6 ft
Outlet Connections 3/8" insert, 1/2" slip 3/8" insert, 5/8" slip
Warranty 3 Years 3 Years

Airflow ratings are manufacturer-published values. Actual airflow depends on operating depth, tubing length and diameter, diffuser capacity, and system resistance. Maximum operating depth is not the same as the depth at which maximum airflow is delivered.



Understanding Atlantic Typhoon Air Pump Performance

Atlantic Typhoon TA1800 and TA3600 air pumps are designed to deliver airflow under pressure, making it important to compare their performance at the actual depth where your diffusers will operate. Maximum airflow ratings represent output with little or no back pressure, while airflow decreases as water depth and resistance increase.

The TA1800 delivers up to 1.06 CFM (30 LPM) at the surface, while the larger TA3600 delivers up to 2.12 CFM (60 LPM). However, these ratings change as diffuser depth increases. For example, at 4 feet deep, the TA1800 produces approximately 0.46 CFM, compared with 1.20 CFM from the TA3600.

When selecting an Atlantic Typhoon air pump, consider the airflow needed by your diffusers at their intended operating depth rather than choosing based only on the maximum CFM rating. Tubing diameter, line length, diffuser condition, and the number of connected diffusers can also affect overall system performance.

How Do I Choose Between the TA1800 and TA3600?

Choosing between the Atlantic Typhoon TA1800 and TA3600 depends on your pond's aeration requirements, diffuser depth, and desired airflow.

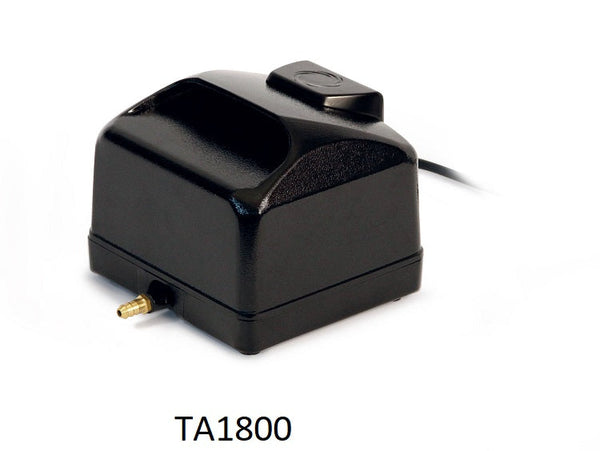

The TA1800 is the smaller model, producing up to 1.06 CFM while using 25 watts of electricity. It supports diffuser depths up to 7 feet and is a practical choice for smaller aeration systems or applications that require less airflow.

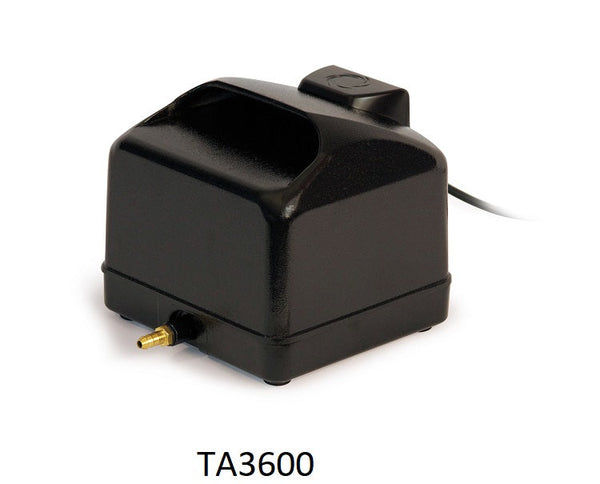

The TA3600 produces up to 2.12 CFM and uses 35 watts. With a maximum operating depth of 11 feet, it provides greater airflow and pressure for larger aeration systems, deeper diffusers, or applications with higher oxygen requirements.

Before choosing, consider the following:

  • Pond size and fish load: Ponds with more fish or greater biological demand may require additional aeration capacity.

  • Diffuser depth: Deeper diffusers create more back pressure and reduce available airflow.

  • Number of diffusers: Multiple diffusers divide the available airflow and must be matched to the pump's capacity.

  • Tubing requirements: Longer tubing runs, smaller tubing, and restrictive connections can reduce airflow.

The TA3600 offers greater output and operating depth, but the TA1800 may be sufficient when your system requires less airflow. Match the pump to the actual operating conditions of your pond rather than selecting a larger model automatically.

How Does Water Depth Affect Atlantic Typhoon Air Pump Performance?

Water depth directly affects how much air an Atlantic Typhoon diaphragm air pump can deliver. As air travels through a diffuser at the bottom of a pond, the pump must overcome the pressure created by the water above it. This resistance, known as back pressure, increases with depth and reduces available airflow.

For example, the TA1800 produces approximately 0.88 CFM at 1 foot deep, but output decreases to 0.46 CFM at 4 feet and 0.14 CFM at 6 feet. The TA3600 delivers approximately 1.91 CFM at 1 foot, 1.20 CFM at 4 feet, and 0.81 CFM at 6 feet.

Atlantic rates the maximum operating depth at 7 feet for the TA1800 and 11 feet for the TA3600. These are maximum limits, not depths at which the pumps deliver their full rated airflow.

For the best results, consider diffuser depth, tubing length, and air-line diameter when planning your aeration system. Use the manufacturer's airflow chart to determine how much air will be available at your intended operating depth.

Can Atlantic Typhoon Air Pumps Help Keep a Pond Free of Ice in Winter?

Yes. Atlantic Typhoon air pumps can help maintain an open area in a pond during winter by moving air through submerged diffusers. The rising air creates water movement and promotes gas exchange at the surface, helping prevent the entire pond surface from becoming sealed by ice.

This is especially useful in ponds containing fish because maintaining an area for gas exchange helps allow naturally produced gases to escape while supporting oxygen exchange. Atlantic designed the Typhoon series for both summer pond oxygenation and winter gas diffusion.

For winter operation, consider these recommendations:

  • Position the diffuser in a relatively shallow area rather than at the deepest part of the pond. This helps avoid unnecessarily circulating warmer water from the bottom.

  • Keep the air pump in a dry, protected, well-ventilated location.

  • Make sure the tubing is free of kinks and restrictions.

  • Keep the pump operating consistently when using it for winter gas exchange.

  • Never assume the pump will prevent all ice formation during extreme cold weather.

An Atlantic Typhoon air pump is a useful alternative to relying solely on a floating de-icer, particularly when you also want aeration during warmer months. However, it does not guarantee an ice-free pond under every weather condition.

How Do I Maintain an Atlantic Typhoon Air Pump?

Routine maintenance helps keep an Atlantic Typhoon air pump operating efficiently and extends the service life of its internal components. The pump features a cleanable air intake filter and replaceable rubber diaphragms, making periodic inspection an important part of ownership.

Clean the air intake filter: Dust and debris can restrict airflow and cause abnormal operating noise. Unplug the pump, remove the air intake cover and filter sponge, and clean the components with mild detergent. Rinse thoroughly and allow everything to dry completely before reinstalling.

Inspect the tubing and connections: Check for kinks, cracks, loose fittings, or other restrictions that could reduce airflow. Make sure the diffuser is clean and has adequate air discharge capacity.

Check diaphragm condition: The rubber diaphragms are wear components that eventually require replacement. Reduced airflow, even after cleaning the filter and checking the tubing, can indicate worn or damaged diaphragms. Heat, moisture, and dust can shorten diaphragm life.

Protect the pump from moisture and overheating: Keep the pump above water level on a stable surface in a dry, well-ventilated location. Route the tubing downward away from the pump to help prevent condensation from flowing back into the housing. An inline check valve is also recommended to provide additional protection against water entering the pump.

Replace worn components when needed: Atlantic offers replacement diaphragm and rebuild components for the Typhoon series. Replacing worn parts can restore performance and help extend the useful life of the compressor.

Always disconnect electrical power before cleaning, inspecting, or servicing the pump. Use a properly grounded outlet protected by a GFCI, and follow the manufacturer's instructions when performing maintenance or replacing diaphragms.
