PA34 System aerates up to:
- 1/4 acre at 5' - 8' deep
- 1/2 acre at 8' - 12' deep
- 1 acre at 12' - 16' deep

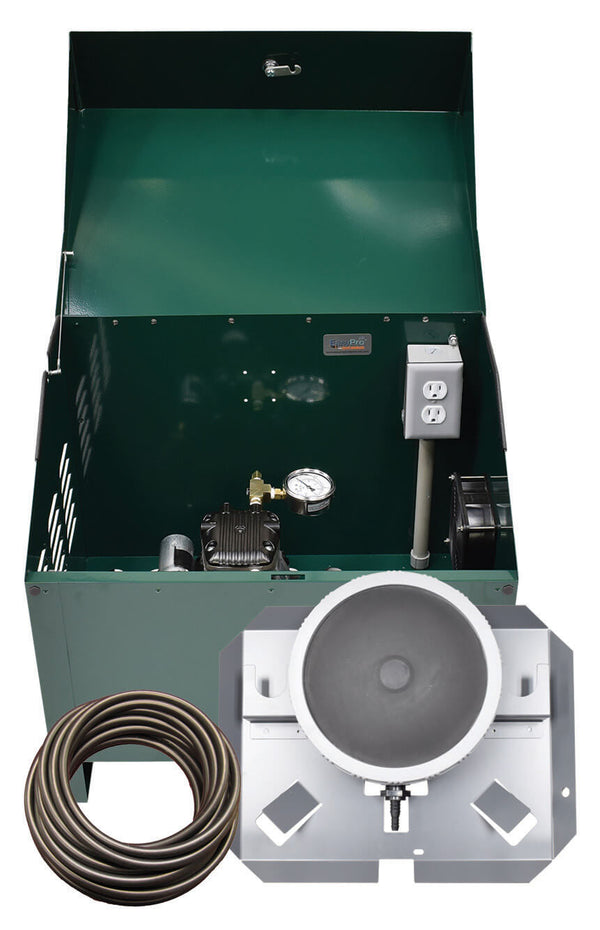

Sentinel Deluxe Systems include lockable steel cabinet with compressor, airlines, plumbing, pressure gauge, cooling fan, and electrical outlet installed.
Sentinel Deluxe Aeration Systems are designed for convenience and reliability. Each package includes air compressor, valved outlet assembly, pressure gauge and pressure relief valve already installed in our deluxe locking cabinet complete with a cooling fan and an electrical box/outlet already mounted and ready for your incoming power line. Simply set cabinet in desired location, install the air diffusers and connect the tubing!
- 1/4 hp Stratus SRC25 Gen 2 compressor with two year warranty
- Includes hardware for either 18" post mounted OR ground mounted cabinet placement (PA34DP model) OR 22" ground cabinet (PA34D & PA34DLD models)
- Outlet assembly with pressure relief, heat reducing hose and 3/8″ connections
- QS1 Quick Sink self weighted single head air diffuser
- 100′ of 3/8″ Quick Sink weighted tubing
- Approximately 2.3 cfm of air flow per diffuser
- Typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary
- 2 Year Warranty on Compressor
- 5 Year Warranty on Tubing, Diffusers and Cabinet
- Available in 115V or 230V options
- You can upgrade any of these with a sound-proofing package too.

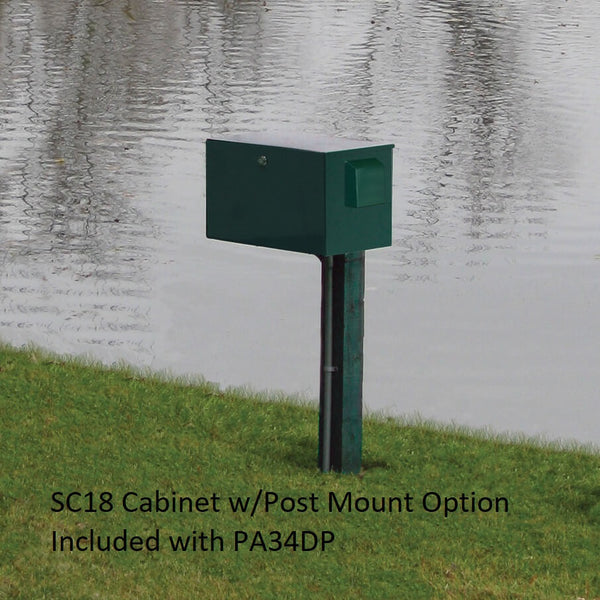

Model PA34DP includes the complete PA34W System above with post mounted/gound cabinet (SC18) - See pictures as there is a picture of the SC18 cabinet

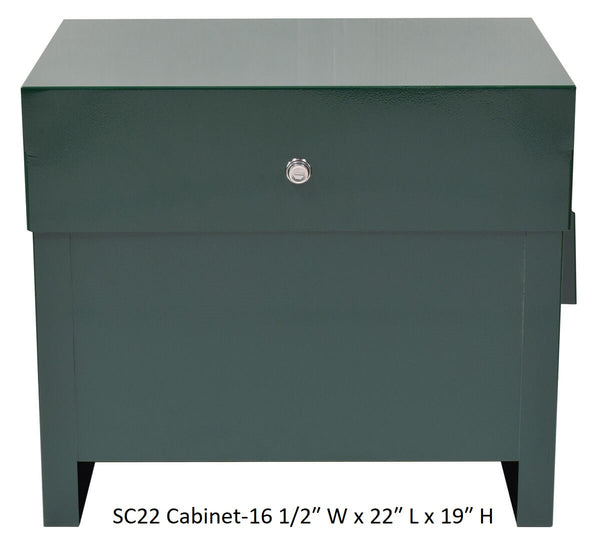

Model PA34D includes the complete PA34W System above WITH 22" ground cabinet (SC22) - See pictures as there is a picture of the SC22 cabinet
Model PA34DLD includes the complete PA34W System above WITH 22" ground cabinet but DOES NOT INCLUDE a diffuser
