Matala® Membrane Air Diffuser Assemblies with Heavy-Duty Base

Matala® SKU: MDB24

No reviews

$222.00

Shipping calculated at checkout

The air diffuser base allows you to mount air diffuser(s) firmly at the bottom of the pond and keeps the air diffusers up out of the mud. The base is heavy duty rugged plastic with soft edges.  The air diffuser base is designed with a hollow base that can be filled with sand or gravel. Choose the number of disc diffusers for your installation needs.

The Matala EPDM disc diffusers are designed for industry heavy duty installation. Precision perforated I-shaped slits open when airflow is present and close when airflow is stopped, which increase the slits resist from tearing, and stay cleaner longer. These diffusers offer the lowest back pressure in the market, only adds less than 6 inches of water depth back pressure, allowing you to utilize your air pump in the most efficient way. All different model types comes with a single 3/4-inch PT female threaded outlet connection.

9 and 12-inch EPDM disc diffuser available. The flow rate will be almost double with the 12-inch diffuser.

Award winning design! Matala offers an air diffuser assembly with hollow base that can be filled with sand or gravel. This eliminates the need for bricks and straps to get the diffuser to sink. The base is heavy duty rugged plastic with soft edges. Fill the base with small gravel and sand and purge of all air bubbles. The base comes with a friendly multi-barb that will allow connection to various sizes of air hose including 3/8", 1/2", 5/8" and 1".

Features and Benefits:

  • The air diffuser platform mounts difuser firmly to bottom of pond up out of any mud.
  • Hollow base is filled with sand or gravel and water to weigh it down and keep shipping cost low.

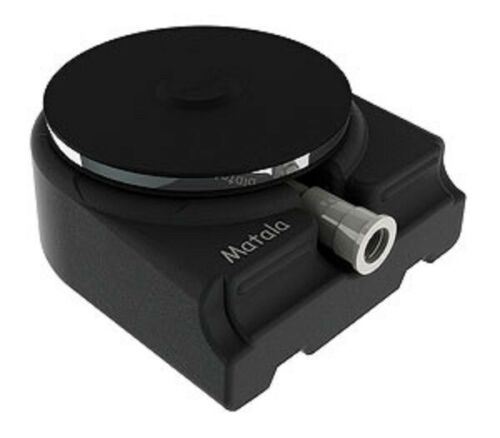

MDB11 - Single Air Base w/ 9-inch disc
Single air base with a 9-inch disc handles airflow handles airflow 0.9 - 4.2 cfm / 25 - 120 lpm. Recommended for 25 lpm - 80 lpm air pumps.

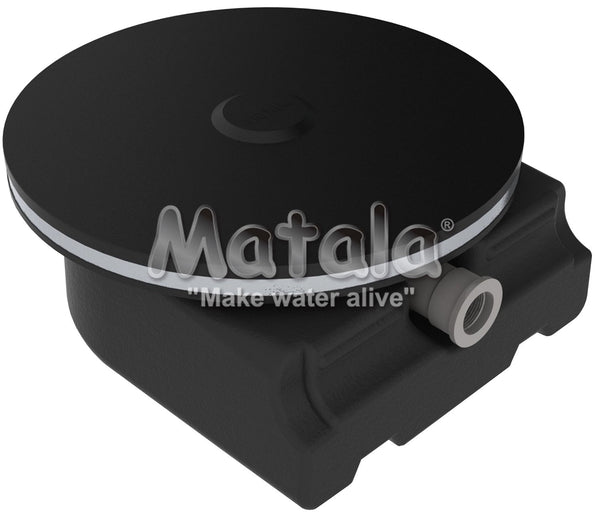

MDB11-12 - Single Air Base w/ 12-inch disc
This utilizes the single air base but incorporates the 12-inch diffuser and handles airflow 2.8 - 7.0 cfm / 80 - 200 lpm. Recommended for 80 lpm to 150 lpm air pumps.

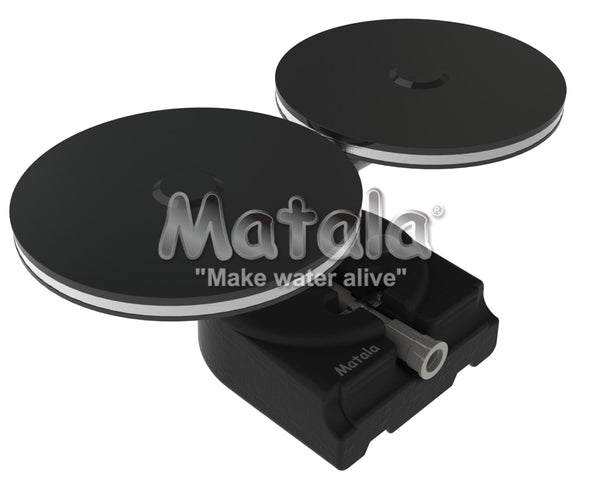

MDB12-12 - Single Air Base w/ (2) 12-inch discs
This utilizes the single air base but incorporates the (2) 12-inch diffusers and handles airflow 5.6 - 14.0 cfm / 160 - 400 lpm. Recommended for 200 lpm to 350 lpm air pumps. This configuration will give a slightly smaller bubble size for a gentler roll at the surface of pond.

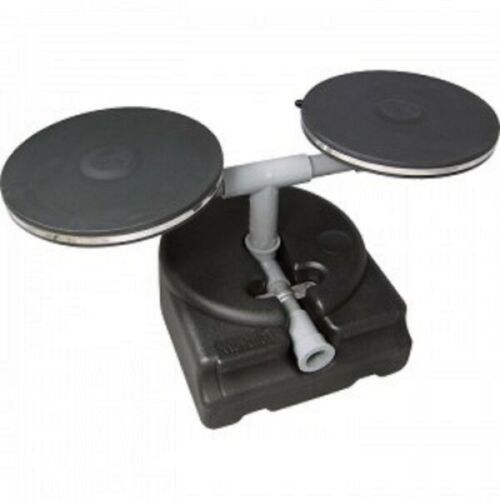

MDB12 - Single Air Base w/ (2) 9-inch discs

The MDB12 comes complete with two 9" air discs supported above the base. Includes multi-barb for hose connection. This handles airflow 2.1 - 8.4 cfm / 60 - 240 lpm. Recommended for 100 lpm - 200 lpm air pumps. This configuration will give a slightly smaller bubble size for a gentler roll at the surface of pond.

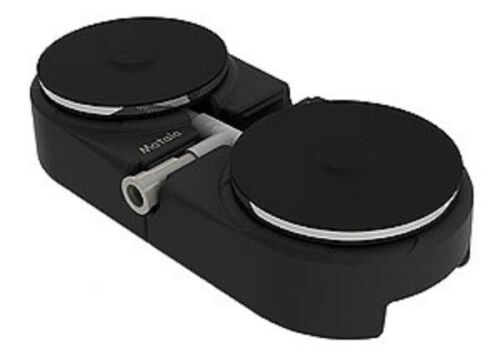

MDB22 - Dual Air Base w/ 9 inch discs
Double air base handles airflow 2.1 - 8.4 cfm / 60 - 240 lpm. Recommended for 100 lpm - 200 lpm air pumps. This configuration will give a slightly smaller bubble size for a gentler roll at the surface of pond.

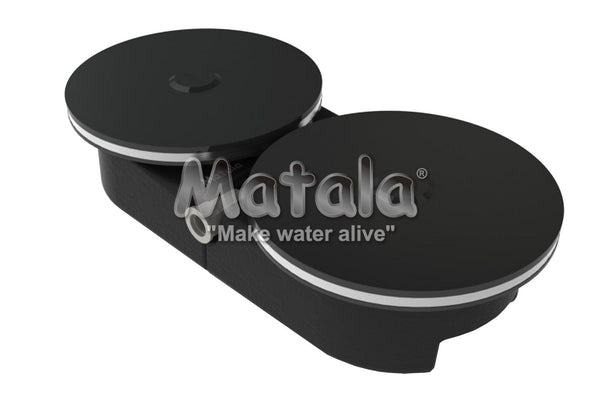

MDB22-12 - Dual Air Base w/ (2) 12-inch discs

This uses the double air base with (2) 12-inch discs and handles airflow 5.6 - 14.0 cfm / 160 - 400 lpm. Recommended for 200 lpm to 350 lpm air pumps. This configuration will give a slightly smaller bubble size for a gentler roll at the surface of pond.

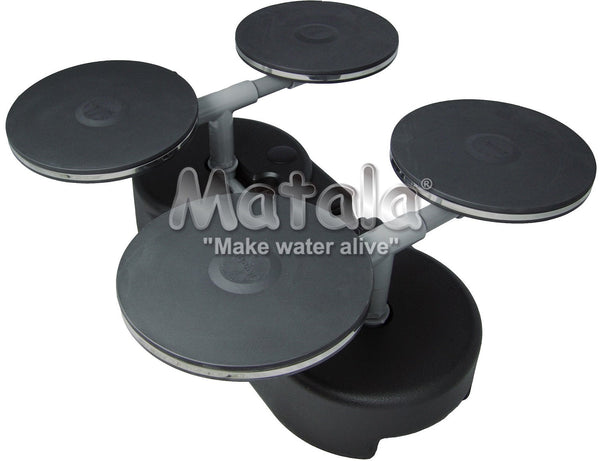

MDB24 - Dual Air Base w/ (4) 9-inch discs

Quadruple 9" head (MDB24) handles airflow 4.2 -16.8 cfm / 120 - 480 lpm. Recommended for 150 lpm to 250 lpm air pumps. This configuration will give a slightly smaller bubble size for a gentler roll at the surface of pond.

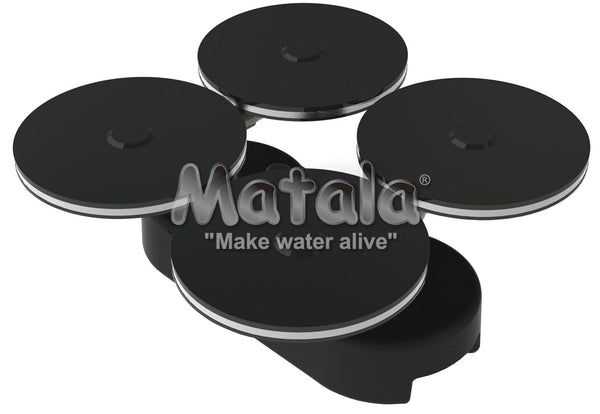

MDB24-12 - Dual Air Base w/ (4) 12 inch discs

This utilizes the double air base with (4) 12-inch discs

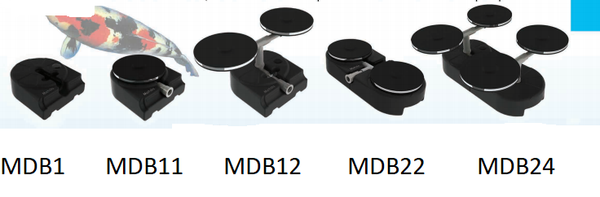

Matala Diffusers and Platorm Options

Matala Diffuser Base Images
